3. Plug the network cable into the RJ-45 connector located at the back of the camera (refer to Figure 3).

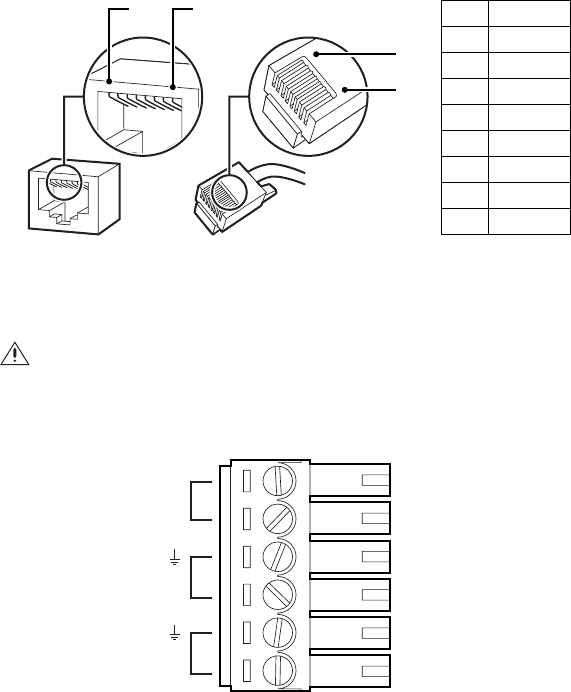

Figure 3. Pin Descriptions
4. Attach the supplied ferrite to the network cable. The ferrite should be installed on the cable
approximately 1 inch from the camera’s RJ-45 connector.
5. Connect the necessary wiring for alarms and relays (refer to Figure 4). Only use the 24 VAC wires if
PoE is not available.
Figure 4. Alarm and Relay Wiring
6. Apply power to the camera. View the camera image using the service jack or a Web browser.
7. Focus the lens:
a. Press the auto back focus button (located on the side of the camera) once to center the focus
mechanism.
b. Manually adjust the zoom and focus of the lens to the desired field of view (refer to the
instructions shipped with the lens).
c. Press and hold the back focus button for three seconds to make the final focus adjustments.
WARNING: The ferrite must be installed for the camera to meet FCC Class B compliance standards.
Failure to correctly install the ferrite might cause harmful interference to radio communications.
