PREPARATIONS
Requires a PC satisfying the following conditions.
• OS: Windows95, Windows98 or Windows NT4.0
• WWW browser active
Recommended browser > Internet Explorer Ver 4.0 or higher
Netscape Navigator Ver. 4.04 or
higher
• Display resolution: 800 x 600 pixels or more
To PC directly or via hub
AC adapter (Accessory)
Camera
10Base-T cable
RS232C
G8765G4321
GBAGBA
XMT RCV SET UP
RS485
VIDEO
IN 4 3 2 1
4321
OUT
ALARM
DC 12V
IN
10BASE-T

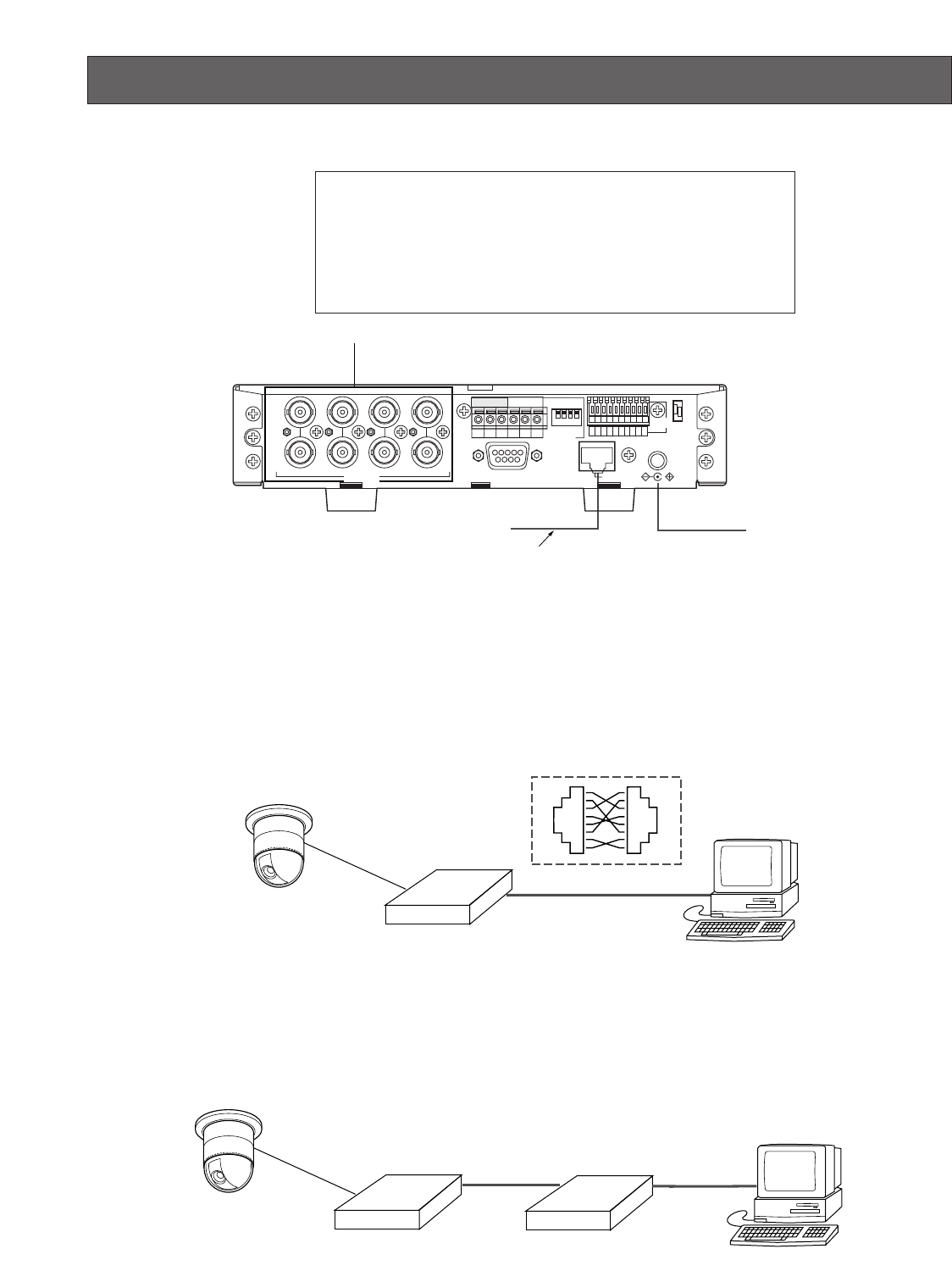

LAN Type Connection
The figure below shows how the WJ-NT104 can be connected directly to a PC for testing before it is connected directly to
a network. The connection can also be made via a hub.
Direct Connection to a PC without Hub
Connect the 10Base-T port on the PC to the Ethernet port on the WJ-NT104 with a crossover cable.
PC (browser)
Ethernet crossover cable
WJ-NT104
Camera (max. 4)
PC
(
browser
)
Hub
Ethernet
straight cable
Ethernet
straight cable
WJ-NT104
Camera (max. 4)
Connection to a Client PC via Hub
Connect the 10Base-T port on the PC to the Ethernet port on the WJ-NT104 with straight cables via a hub.
