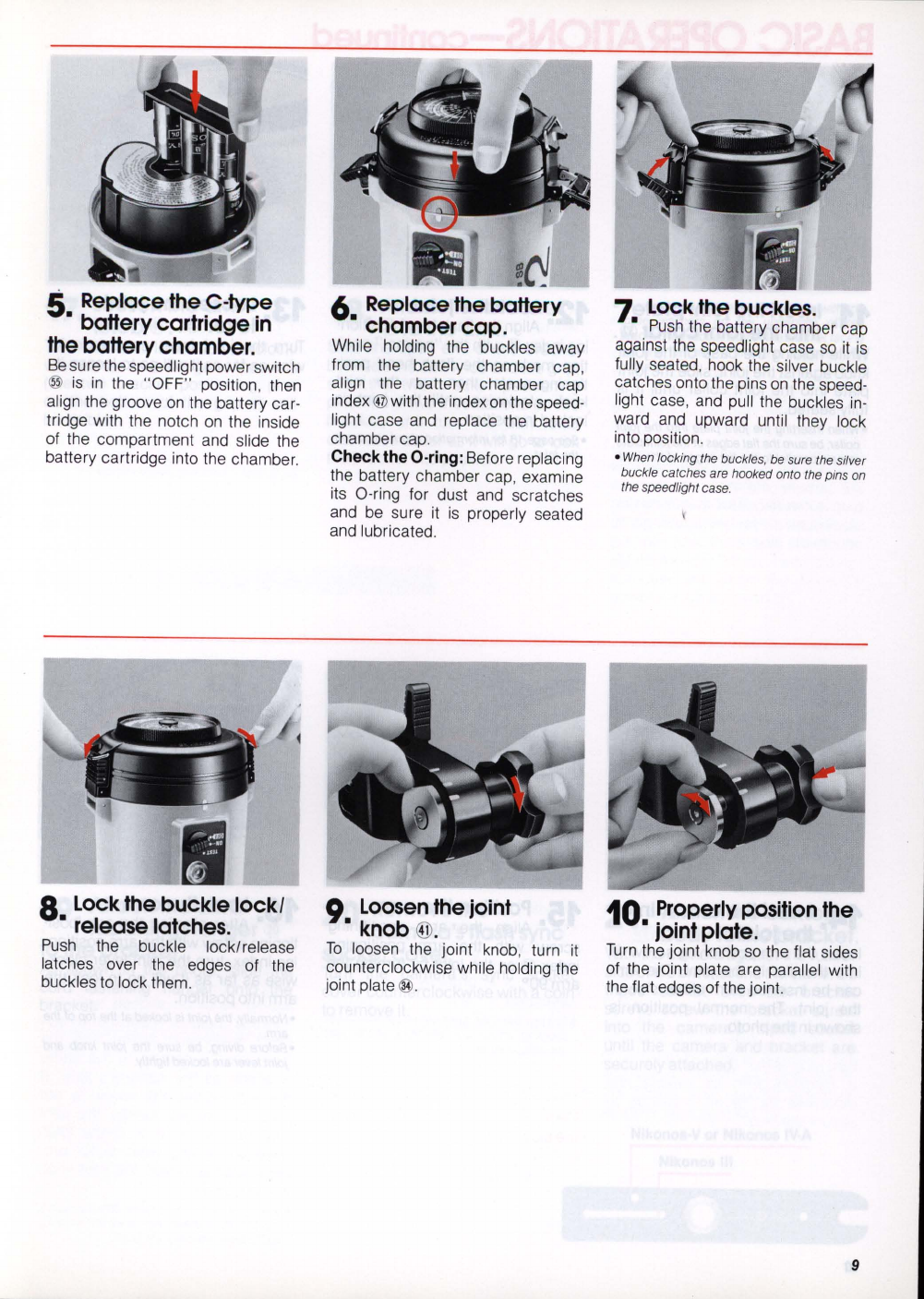

5 Replace the C-type
• battery cartridge
in
the battery chamber.
Be
sure the speedlight power switch
®
is
in
the "OFF" position, then
align the groove
on
the battery car-
tridge with the notch
on
the inside
of the compartment
and
slide the
battery cartridge into the chamber.
8 Lock the buckle lockl
• release latches.
Push
the buckle lock/release
latches over the edges of the
buckles to lock them.
6. Replace the battery
chamber
cap
.
While holding the buckles away
from the battery chamber cap,
align the battery chamber cap
index
@ with the index
on
the speed-
light case
and
replace the battery
chamber cap.
Check the O·ring: Before replacing
the battery chamber cap, examine
its O-ring for dust
and
scratches
and
be
sure it
is
properly seated
and lubricated.
9
Loosen
the joint
• knob
®.
To
loosen the joint knob, turn
it
counterclockwise while holding the
joint plate
®.
7,
lock
the buckles.
•
Push
the battery chamber cap
against the speedlight case
so
it
is
fully seated, hook the silver buckle
catches onto the pins
on
the speed-
light case,
and
pull the buckles
in-
ward
and
upward until they lock
into position.
•
Wh
en locking the buckles, be sure the silver
buckle catches are hooked onto the pins on
the speed/ight case.
10 Properly position the
• joint plate.
Turn
the joint knob
so
the flat sides
of
the joint plate are parallel wi
th
the flat edges of the joint.
9
