Packard Bell EasyNote M5/M7 Disassembly Manual

25

Removing the WLAN Module

To remove the WLAN Module on Versa E400/EasyNote M5, first remove the Main Board

(see

Removing the Main Board), then perform the following steps: To remove the WLAN

Module on EasyNote M7, first remove the Keyboard (see

Removing the Keyboard), then

perform the following steps:

1. Disconnect the WLAN antenna connection on the WLAN Module then unclip it as

shown in Fig. 41

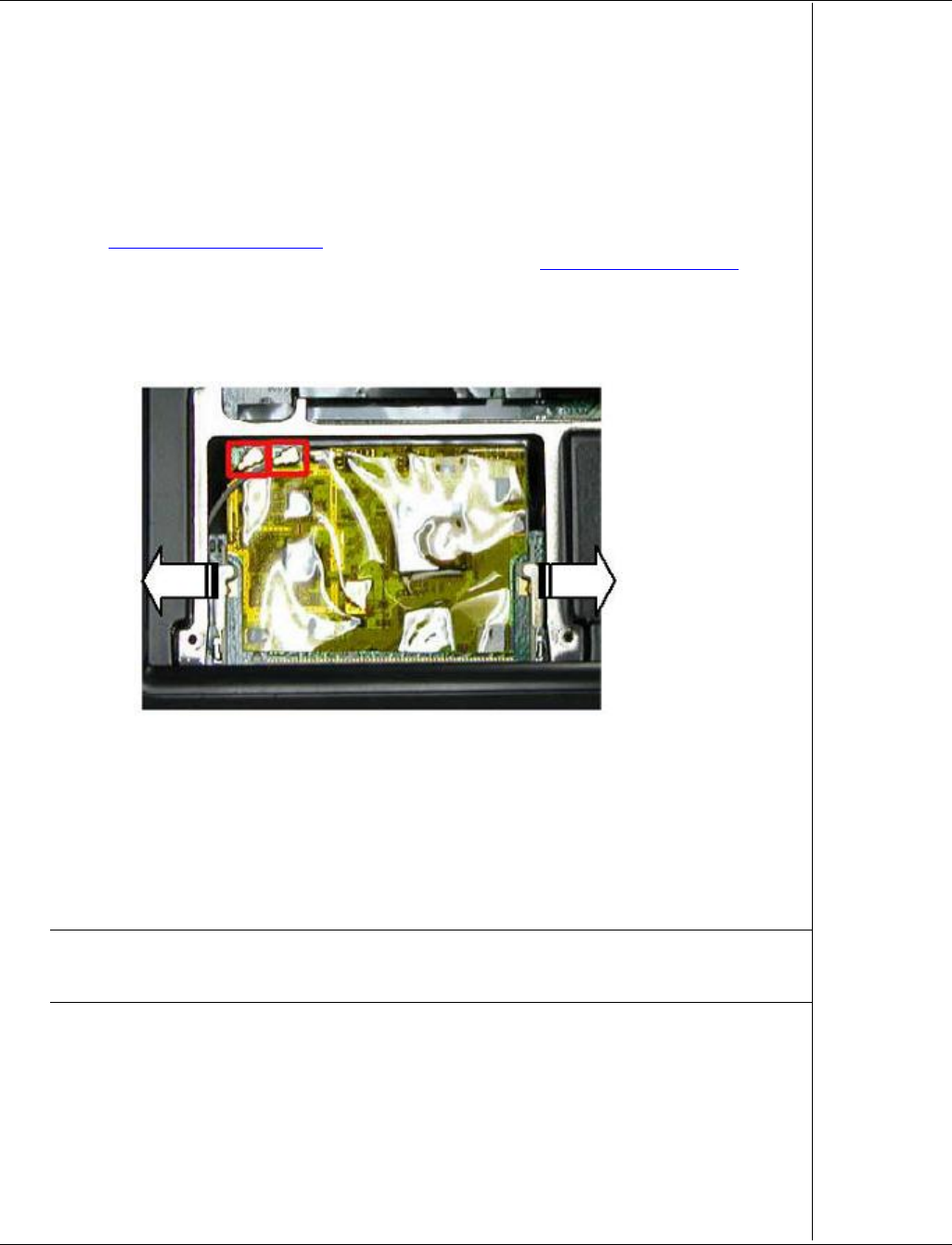

Fig. 41 Removing the WLAN Module

2. Carefully lift up the WLAN module and put it aside.

Note: The location of the WLAN module in the EasyNote M5 is different than the one in the

EasyNote M7. On the M7 the WLAN module is located under the keyboard. On the M5 the WLAN

module is next to the PCMCIA slot.
