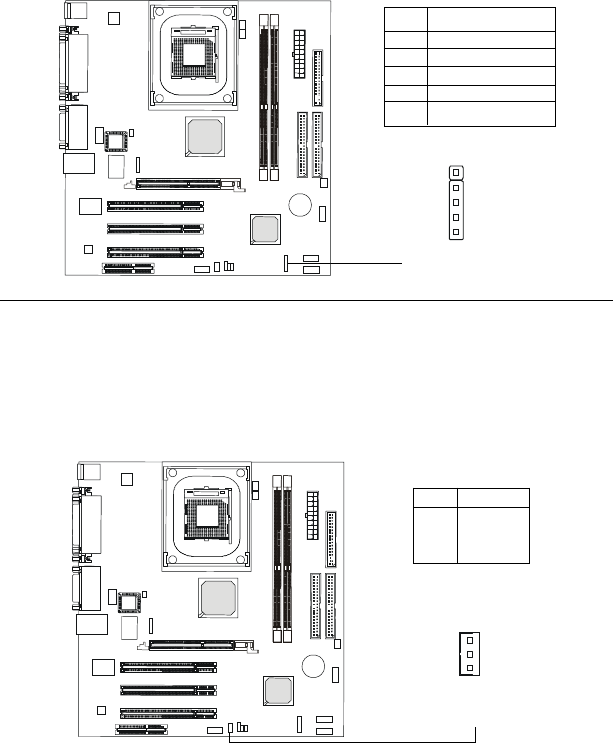

Wake On Ring Connector: JWR1
This connector allows you to connect to a modem card with Wake On
Ring function. The connector will power up the system when a signal is re-
ceived through the modem card. JWR1 is compliant with Intel
®
Front Panel I/
O Connectivity Design Guide.
Pin Signal
1NC
2 GND
3 MDM_WAKEUP
4NC
5 5VSB
Wake On LAN Connector: JWL1
This connector allows you to connect to a LAN card with Wake On LAN
function. You can wake up the computer via remote control through a local
area network. JWL1 is compliant with Intel
®
Front Panel I/O Connectivity
Design Guide.
JWL1
1
Pin Signal
1 5VSB
2 GND
3 WOL
JWR1
1
5
