2-14
MS-9803 Mainboard
3
JTV2
1
5
4
2

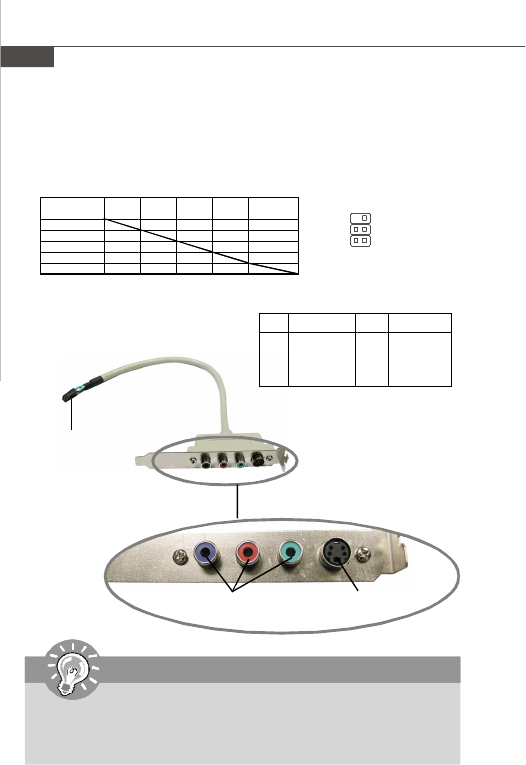

TV-Out Connector: JTV2 (Optional)
This connector is for you to attach an optional TV-Out bracket that offers two types
of TV-Out connectors: S-Video and RCA Composite connectors. Select the appropri-
ate one to connect the standard television or the HDTV (High-Definition TeleVision).
Important
Please note that the TV-Out bracket can connect to one TV only. Users have
to choose either the RCA Composite or the S-Video to connect. Simulta-
neously connecting two TVs to this bracket is prohibited and may lead to the
malfunction of the TVs.
TV-Out Bracket (Optional)
Connect to JTV2
Standard TV-Out
Connector (S-Video)
HDTV-Out Connector
(RCA Composite)
V : Support X : No Support
CRT LVDS TV-OUT SDVO
PCI-E x16
port
CRT V V V X
LVDS V V V X
TV-OUT V V V X
SDVO V V V X
PCI-E x16 port
X
X
X
X
Display Matrix
Pin Description Pin Description
1 GND 4 GND
2 LCVBS 5 LC
3 LY 6 NC
Pin Definition
