Chapter 2: Getting to Know the Switch
SRW208P, SRW208MP - Front Panel
WebView Switches
G1 The mini-GBIC (gigabit interface converter) port is a connection point for a mini-GBIC
expansion module, so the Switch can be uplinked via fiber to another switch. Each
MiniGBIC port provides a link to a high-speed network segment or individual workstation at
speeds of up to 1000Mbps.
Use the Linksys MGBT1, MGBSX1, or MGBLH1 mini-GBIC modules with the Switch. The
MGBSX1 and the MGBLH1 require fiber cabling with LC connectors, while the MGBT1
requires a Category 5e Ethernet cable with an RJ-45 connector.
9 The 100LX port is where you can connect
Console The Console port is where you can connect a serial cable to a PC’s serial port for
configuration using your PC’s HyperTerminal program. Refer to Chapter 4: Using the
Console Interface for Configuration for more information.
SRW208P, SRW208MP - Front Panel
The Switch's LEDs and ports are located on the front panel.
LEDs
System Green. The SYSTEM LED lights up to indicate that the Switch is powered on.
Link/Act Green. The LINK/ACT LED lights up to indicate a functional network link through the
corresponding port (1 through 8) with an attached device. It flashes to indicate that the
Switch is actively sending or receiving data over that port.
PoE Orange. The PoE LED lights up to indicate a device is connected utilizing Power over
Ethernet on the corresponding port (1 through 8).

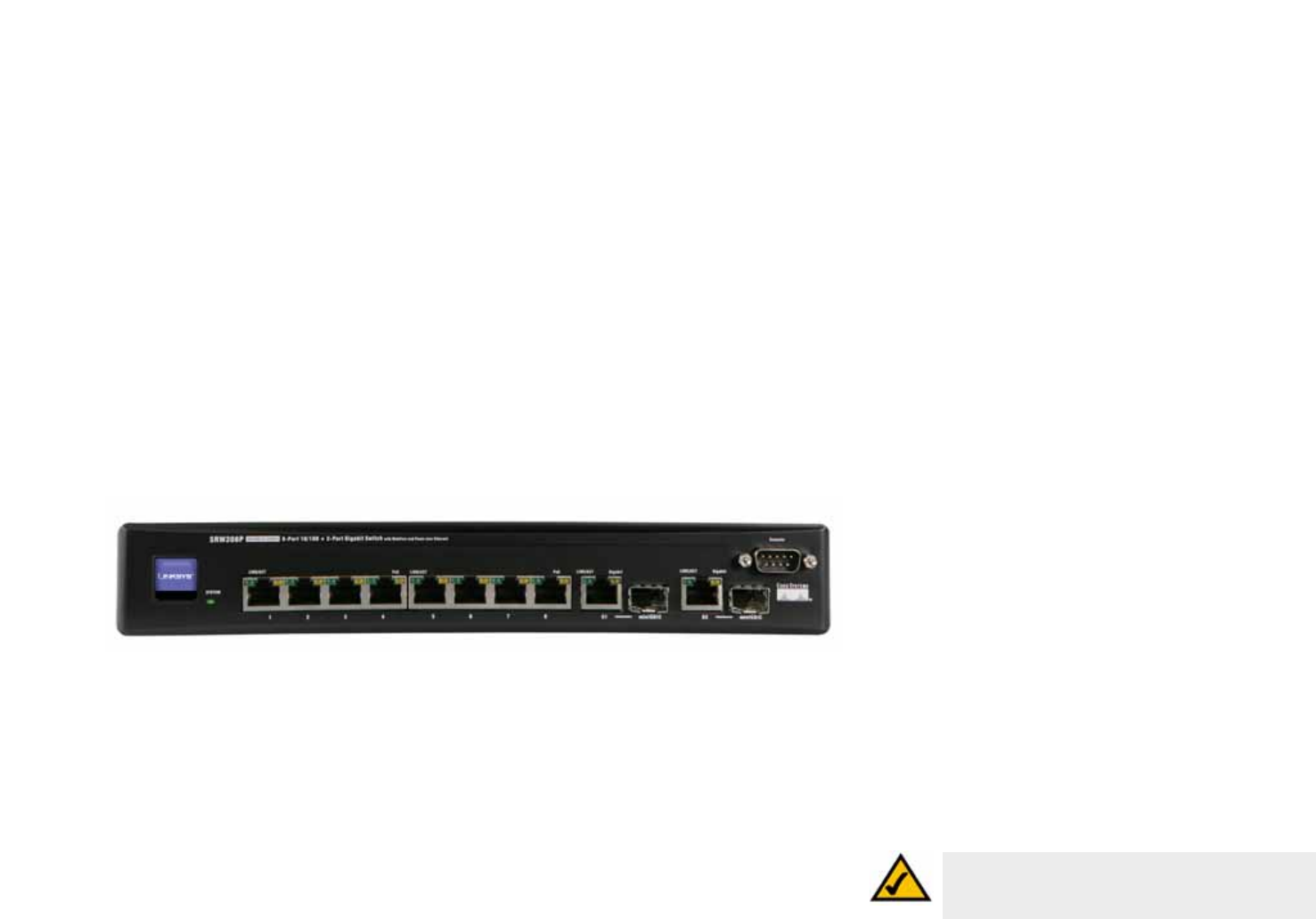

Figure 2-4: Front Panel of the SRW208P
NOTE: The SRW208P supports up to 4 ports at 15.4W
or up to 8 ports at 7.5W.
The SRW208MP supports up to 8 ports at 15.4W.
