1. Introduction
Thank you for purchasing the LINDY HDMI 4 x 4 Matrix Switch 1.3b with remote
control. This high performance switch offers you the maximum convenience in HDMI
signal distribution when you have multiple HDMI sources and displays to connect
together. Each of the four HDMI sources can be directed to any one of the four HDMI
displays, so your displays can show four different sources at the same time. When the
HDMI signal is progressed through the switch it is retimed and level compensated, so
that the output is a regenerated HDMI signal that can travel another 25 metres. The
switch can also be cascaded to multiple levels.
2. Features
• HDMI 1.3b, HDCP 1.1 and DVI 1.0 Compliant
• HDMI input is compensated, clock / phase adjusted and jitter eliminated so the
output is a new standard HDMI signal
• Input source LED indicators
• Ideal for home theatre integration, conference room and retail stores
• Supports high resolution input/output
• Supports a wide range of PC and HDTV resolutions from VGA to UXGA and
480i to 1080p
• RS-232 control
• IR remote control
3. Operation Control

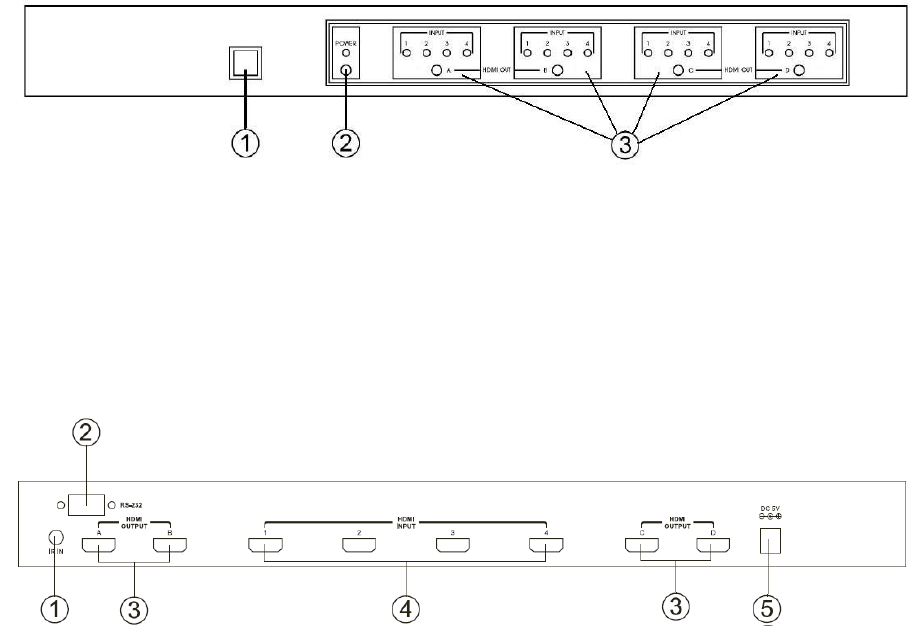

Front Panel
1. Remote control sensor
2. Power switch and LED indicator (LED will illuminate when power is turned on)
3. Input select/Indicators:
Press the HDMI out A, B, C or D buttons repeatedly to switch to your desired
source, and the LED will illuminate to indicate which input source is selected and
routed to the appropriate display.
Rear Panel
