4-10 Service Manual
4069-XXX

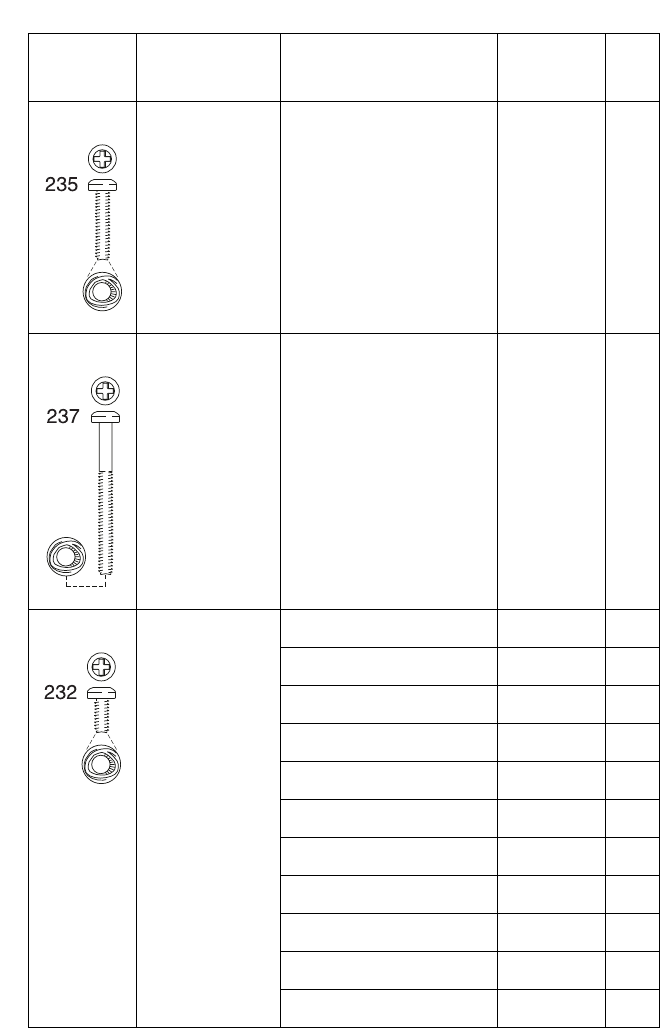

M3x12 mm
Taptite
Panhead
HVPS board mounting 1
M3x28 mm
Taptite
Panhead
developer drive ground
(bottom hole)
attach 1
M3x6 mm
Taptite
Panhead
stacker duct mounting 1
engine board mounting 2
controller to shield mounting 2
controller board mounting 2
in pan mounting 2
shield ground attach 1
LVPS mounting 2
fuser cover mounting 2
cable clip mounting 2
outer shield mounting 6
ina cover mounting 4
Reference
Number
Screw Type Location Purpose Qty
