VIDEO PLAYBACK
(cont.)
Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.

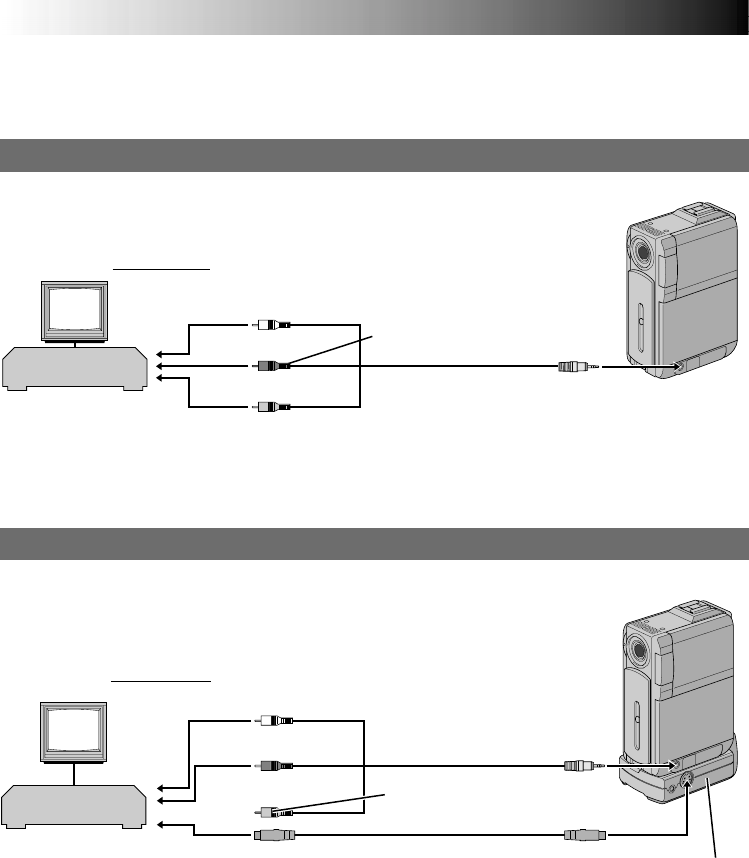

A. Connection to a TV or VCR equipped only with A/V input (RCA type) connectors
B. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors
White to AUDIO L IN*
To S-VIDEO IN
Red to AUDIO R IN*
Yellow: Not connected
To S-VIDEO
S-Video cable
(optional)
Audio/Video cable
[mini-plug to RCA plug]
(provided)
TV
To TV or VCR
To AV OUT
VCR
TV
Yellow to VIDEO IN
Audio/Video cable
[mini-plug to RCA plug]
(provided)
Red to
AUDIO R IN*
White to AUDIO L IN*
To AV OUT
To TV or VCR
VCR
* The Audio cable is not required for watching still images only.
Docking
Station**
* The Audio cable is not required for watching still images only.
** Refer to Docking Station Attachment ( pg. 25).
