Raw display panels are available using the following spare part numbers:
●
725454-001: HD, non-touch
●
725455-001: HD, touchscreen
●
725456-001: FHD, non-touch
●
725457-001: FHD, touchscreen

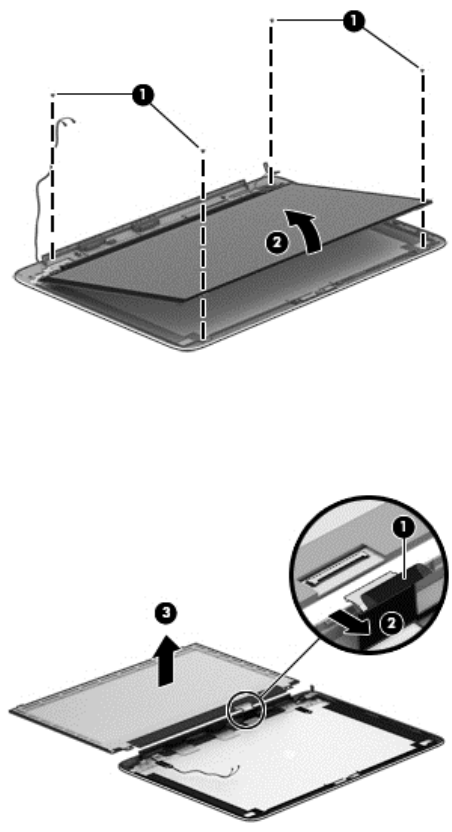

11. Lift the adhesive strip atop the display panel connector on the back of the raw display panel (1),
and then disconnect the display cable. (2). Remove the display panel from the display enclosure
(3).
12. Remove the cable from routing clips on the side of the display enclosure (1), from underneath the
hinge (2), and then lift the cable out of the display enclosure (3).
Display panel cables are available using the following spare part numbers:
●
725443-001: Touchscreen displays
●
725461-001: Non-touch displays
