ENWW Paper feed units of Trays 2 and 3 175
MFP disassembly/assembly

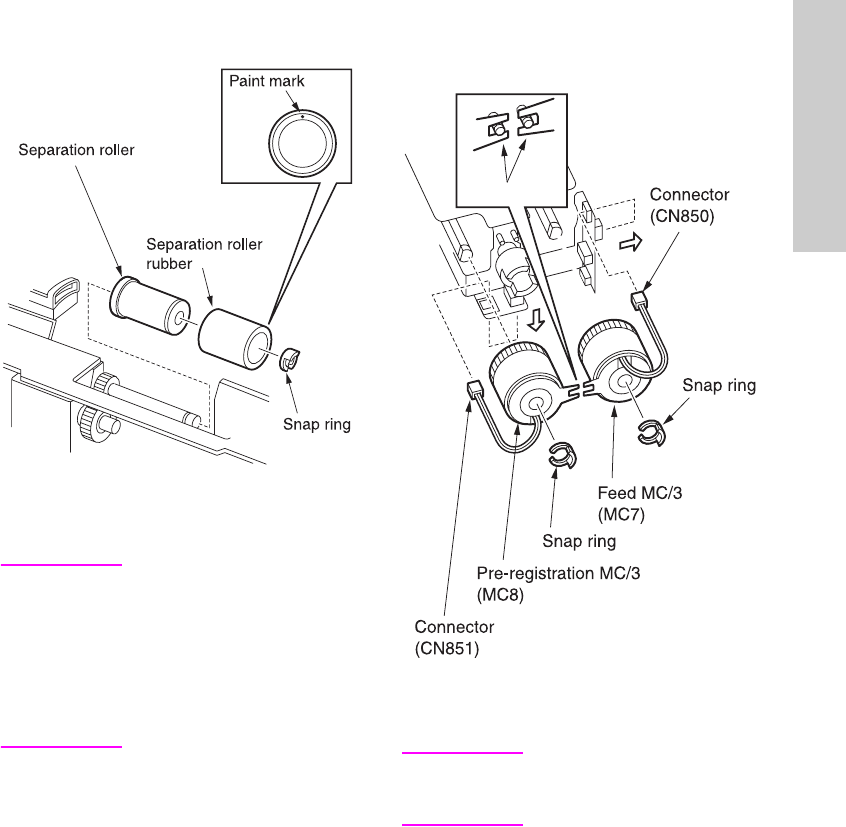

4 Remove the separation roller rubber from
the roller.
5 Reinstall the above parts following the
removal steps in reverse.
CAUTION When reinstalling the
separation roller, pay
attention to their
orientation.
Check that no grease or
the like remains on the
separation roller.
Replacing the pre-registration
and feed clutches (MCs)
Procedure
1 Remove the paper feed unit.
2 Remove the four connectors (CN810, 811,
830, 831).
3 Remove the snap ring to detach the
pre-registration MC/1/2 (MC4/6) and feed
MC/1/2 (MC3/5).
4 Reinstall the above parts following the
removal steps in reverse.
CAUTION When reinstalling each
MC, fit the detent in the slit
in the MC.
