6Ć10 Removal and Replacement
C4699Ć90000

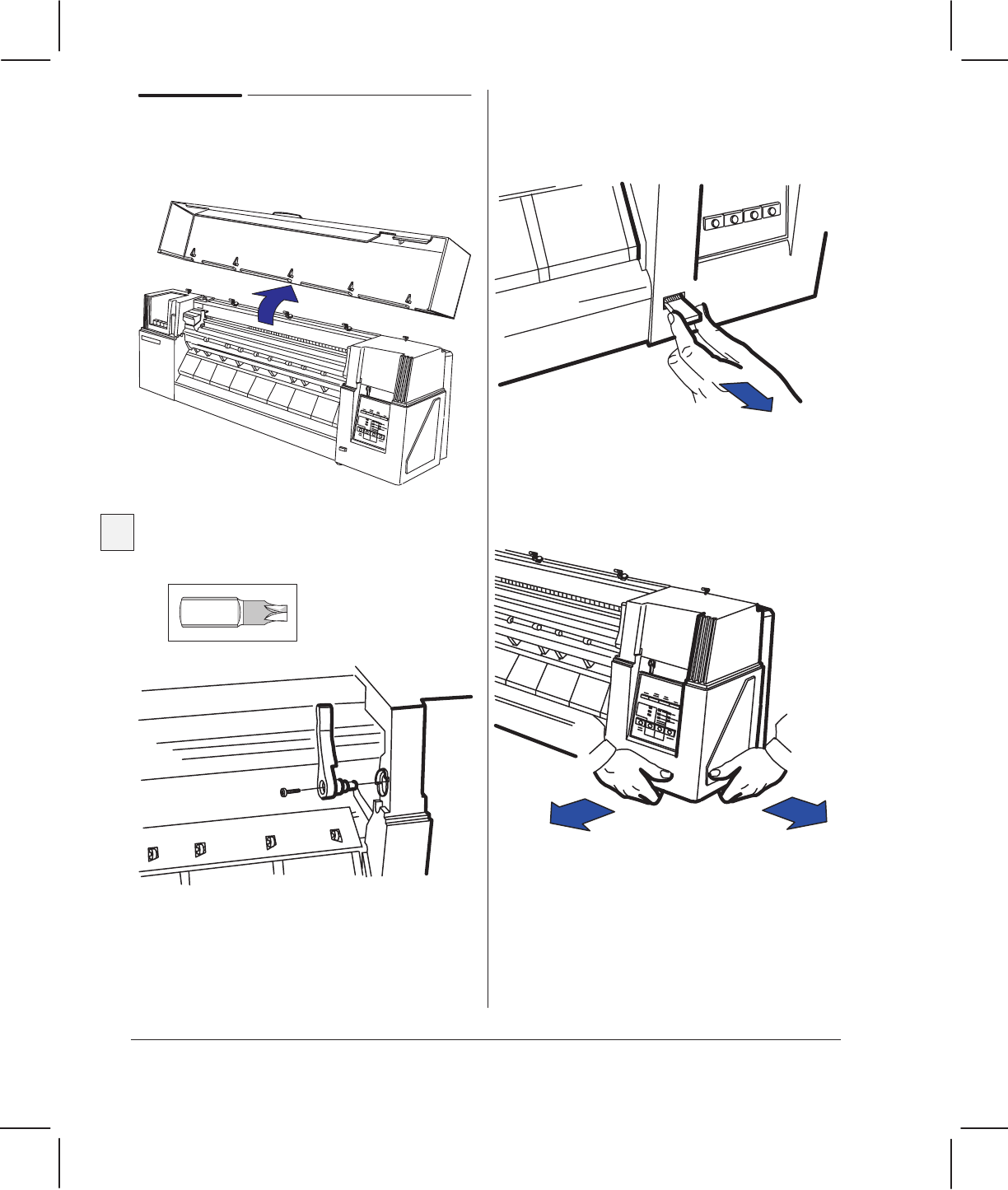

Removing the Right EndĆCover
1 Remove the top cover ' page 6Ć7.
2 Remove the rollĆfeed assembly ' page 6Ć8.
3 Remove the pinchĆwheel lever and screw.
Torx-10
4 Pull the plotter on/off switch out of the
endĆcover.
5 Release the three clips at the bottom of
the endĆcover: first the side clip, then the
front and back clips.
These may be stiff.
A
B
