1

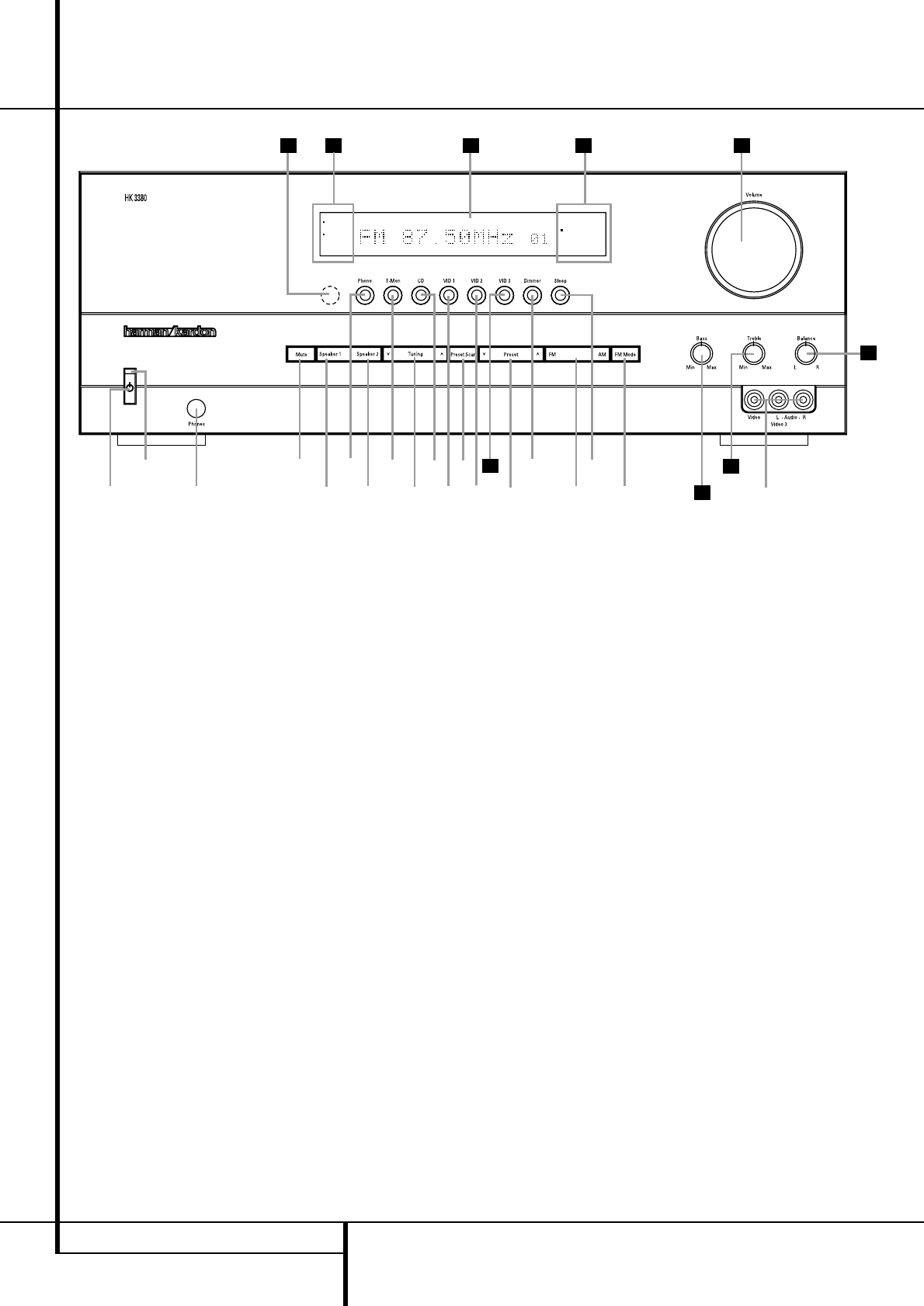

Video 3 Input Jacks: These audio/video
jacks may be used for temporary connection to
video games or portable audio/video products
such as camcorders and portable audio players.
To select the front-panel inputs, press the Video
3 Input Selector Ú repeatedly until the dot
to the left of the Video 3 Input Indicator ˆ
flashes. In order to view the video signal of a
video device connected to this input, remember
to connect the Video Monitor Output
K
to
the video input of your TV or video display.
2
System Power Control: Press this button
to turn on the HK 3380; press it again to turn
the unit off (to Standby). Note that the Power
Indicator surrounding the switch
3
will turn
blue when the unit is on.
3
Power Indicator: This LED will illuminate in
amber when the unit is in the Standby mode to
signal that the unit is ready to be turned on.
When the unit is in operation, the indicator will
turn blue.A red indicator means that the unit is
in the Protect mode, and should be turned off
and then checked for a possible speaker wire
short circuit.
4
Headphone Jack:This jack may be used to
listen to the HK 3380’s output through a pair of
headphones. Be certain that the headphones
have a standard 6,3 mm stereo phone plug.
5
Mute: Press this button to momentarily
silence the speaker and preamp output of the
HK 3380.
6
Speakers 1 Selector: Press this button to
turn the speakers connected to the Speaker 1
output terminals
G
on or off.
7
Speakers 2 Selector: Press this button to
turn the speakers connected to the Speaker 2
output terminals
H
on or off.
TAPE M.
