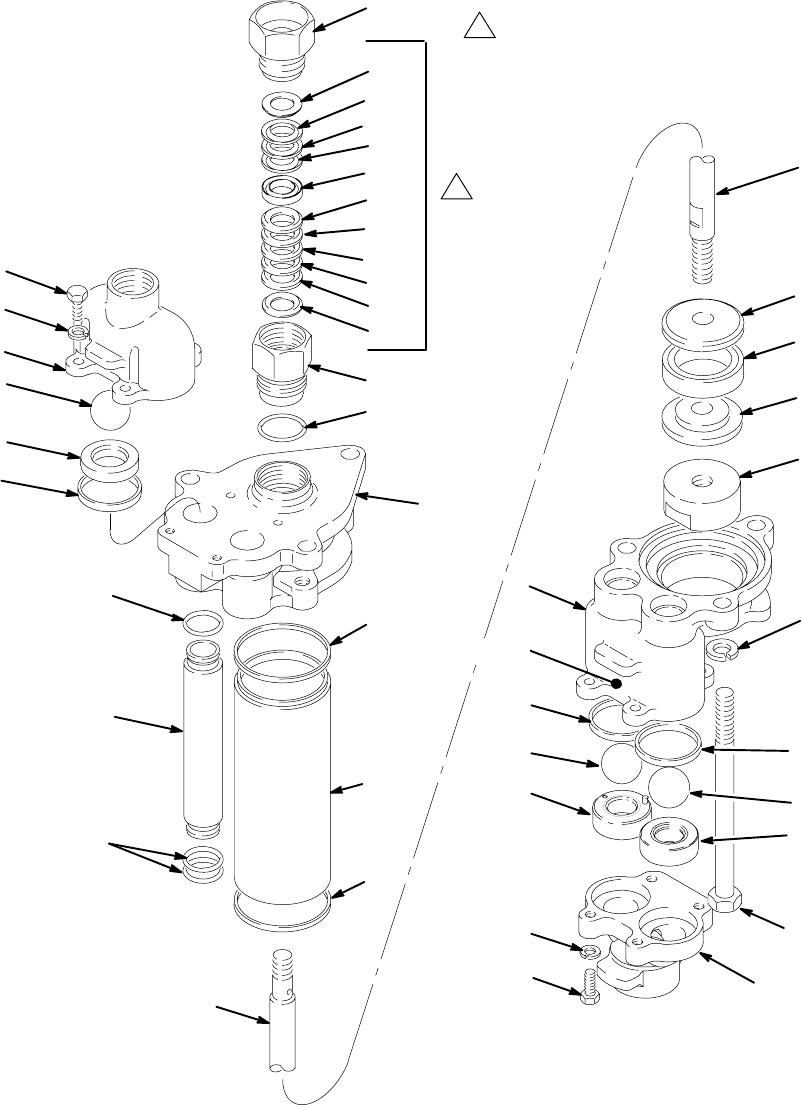

Displacement Pump Parts
SEVERE-DUTY ELECTROPOLISHED STAINLESS STEEL DISPLACEMENT PUMPS
Model 239836, Series B; for Pump Models 220564, 236602, and 239854
Model 239837, Series B; for Pump Models 220563, 220568, and 236606
Model 239838, Series B; for Pump Models 220562, 220570, 220578, and 236713
Model 239859, Series B; for Pump Model 237222
NOTE: See Service Section for important assembly procedures, torque notes, and sealants.
01930C
16
15*
16
12
14
13
9
8
*7
5
11
17
*2
3
*2
18*
1
19{
20{
26{
21
9
8
23
24
*7
25{
20{
20{
25{
18*
4
17 (Ref)
5
6
7*
34
10
22
20
20
25
39{
38
19
4
Y35, 36
4
Model 239859 uses 8 v-packings (20), instead of 5
UHMWPE (20) and 3 leather (25) as shown for all other models.
PTFE
