Installation Instructions
INSTALLATION—RECIRCULATING

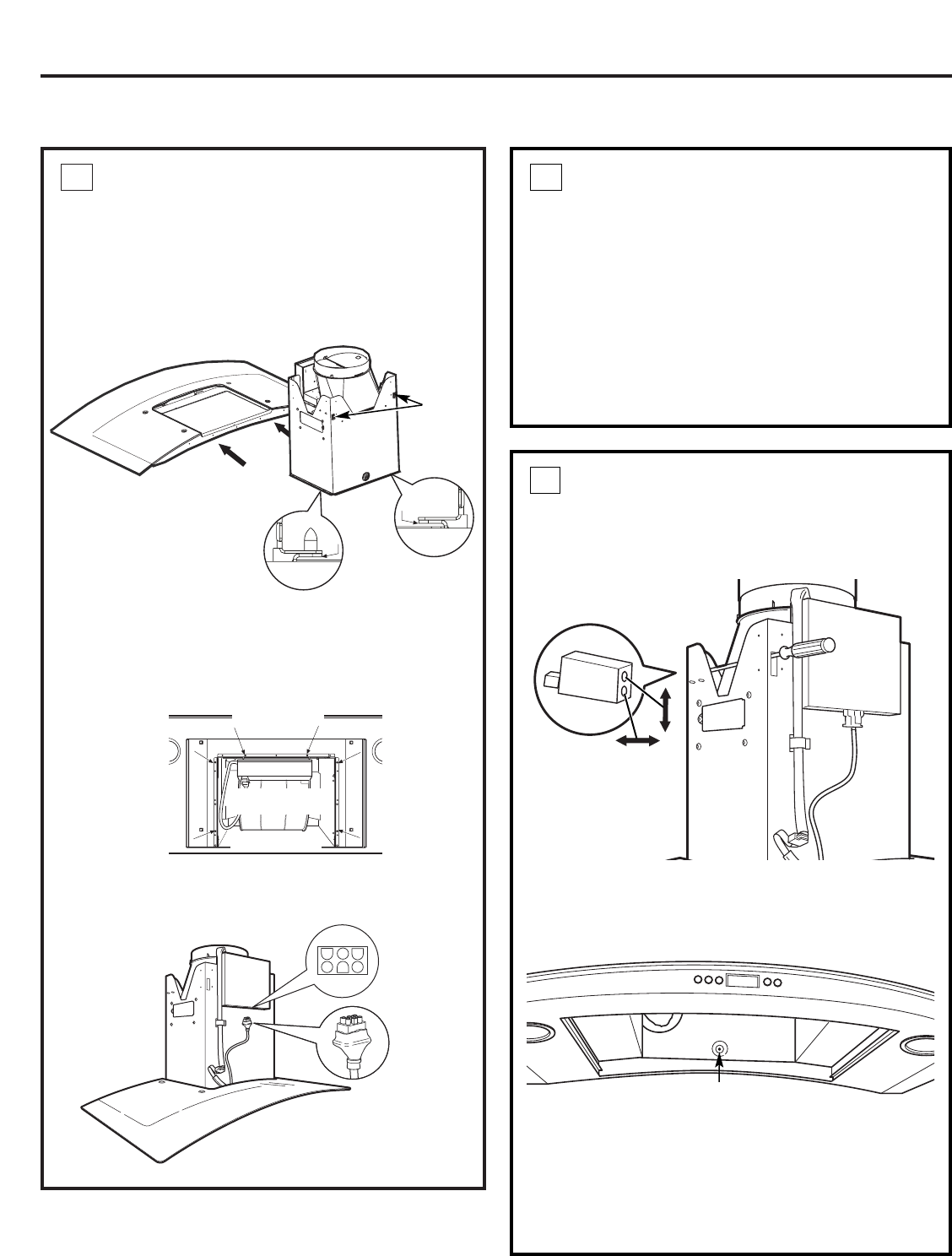

PREPARE THE HOOD
• Place the hood on a padded surface.
• Position the motor housing at the back of the hood.
Electrical connectors should face the front, with
rear mounting hooks at the back.
• Slip the bottom flange of the motor housing into
the side slots at the top rear opening.
• Carefully lay the hood on its back.
• Fasten the hood to the motor housing from the
bottom, using 6 screws.
• Join two cable connectors at the front of the hood.
4
Rear
mounting
hooks
Engage flange on motor
housing into slots
Rear view
Bottom view
Rear side
Front side
To Lights
To
Control
Panel
MOUNT THE HOOD
WARNING:2 people are required to lift and
position the hood onto the mounting bracket.
AVERTISSEMENT :
If faut deux personnes pour lever et mettre en place
la hotte sur le support de montage.
• Lift the hood onto the mounting bracket.
• Position a spirit level at the bottom of the hood to
check side to side leveling.
5
LEVEL THE HOOD
This hood has built-in levelers on the mounting hooks
at each side. Use a long Phillips screwdriver from the
front to access the levelers.
• Use the top screw hole in the leveler to raise or lower
the hood on that side.
• Use the bottom screw hole to pull the hood tight
against the wall surface.
• Mark hole location at the bottom of the hood.
• Remove the hood. If the bottom screw hole does not
enter a stud, enlarge the hole to 3/8″ and install wall
fastener anchors.
• Place the hood back onto the mounting bracket,
check level again and install the wall fastener.
6
Screw hole
Levelers
