3-13
MTPX Plus Twisted Pair Matrix Switchers • Operation
Example 1: Creating a set of video and audio ties
Inthefollowingexample,input5istiedtooutputs3,4,and8.Thestepsshowthe
front panel indications that result from your action.
N
This example assumes that there are no ties in the current configuration.

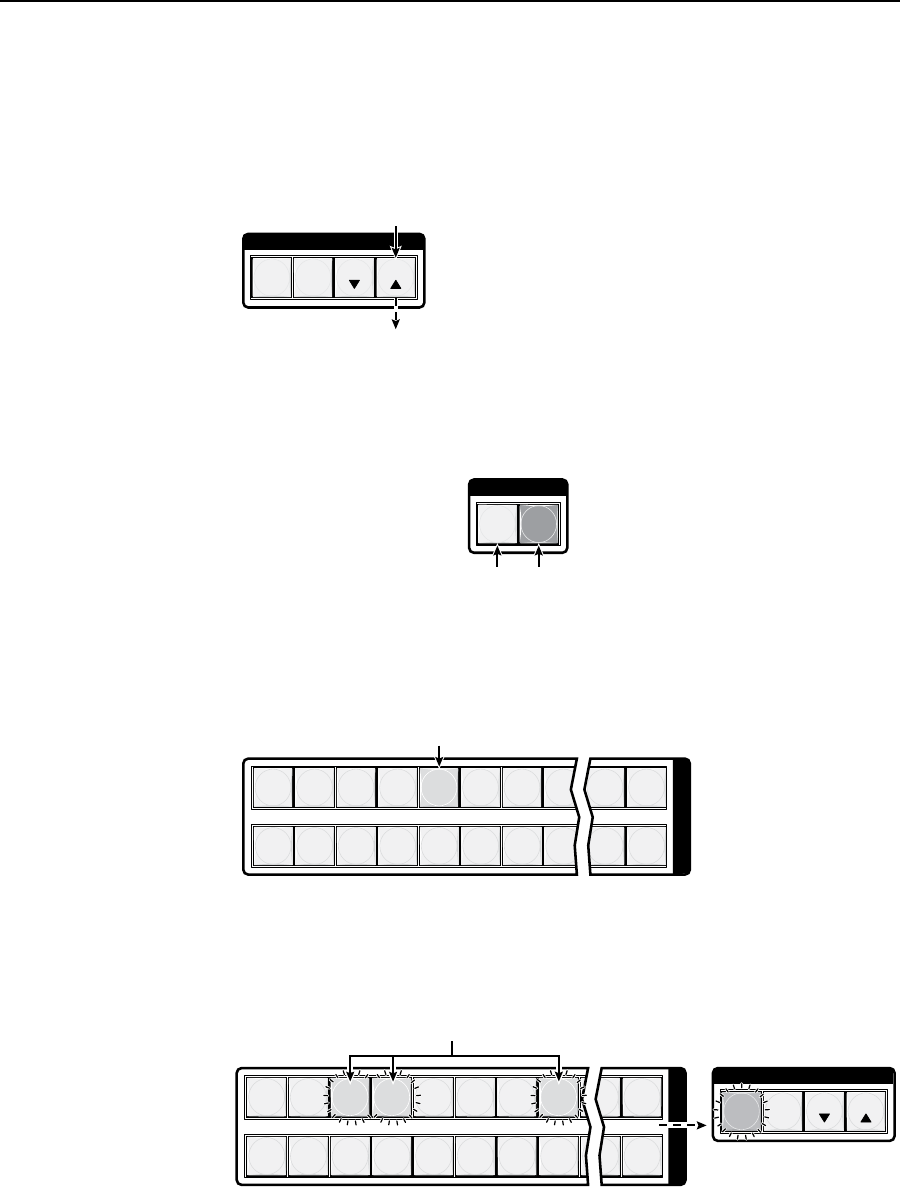

1. Press and release the Esc button (figure 3-4).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-4 — Clear all selections
2. To select video and audio for the tie, if necessary, press and release the Video
button and the Audio button. The Video and Audio buttons light (figure 3-5).
I / O
VIDEO AUDIO
Press the Video button to toggle on and off.
The button lights green when selected.
Press the Audio button to toggle on and off.
The button lights red when selected.
Figure 3-5 — Select video and audio
3. Pressandreleasetheinput5button(gure3-6).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
I
N
P
U
T
S
Press and release the Input 5 button.
The button lights amber.
Figure 3-6 — Select an input
4. Pressandreleasetheoutput3,output4,andoutput8buttons(gure3-7).
C O N T R O L
PRESET
ENTER
ESCVIEW
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S
Press and release the Output 3, Output 4, and Output 8 buttons.
The buttons blink amber to indicate that the selected video and audio inputs
will be tied to these outputs.
The Enter button blinks
green to indicate the need to
confirm the change.
Figure 3-7 — Select the outputs
