MCE User’s Guide Printing
NM20600A-A 2004-05-17 17
10 Printing
You can print the displays or save them as images by using the printing dialog,
or with UNIX command
/neuro/mce/bin/xgifdump
10.1 Printing from the dialog

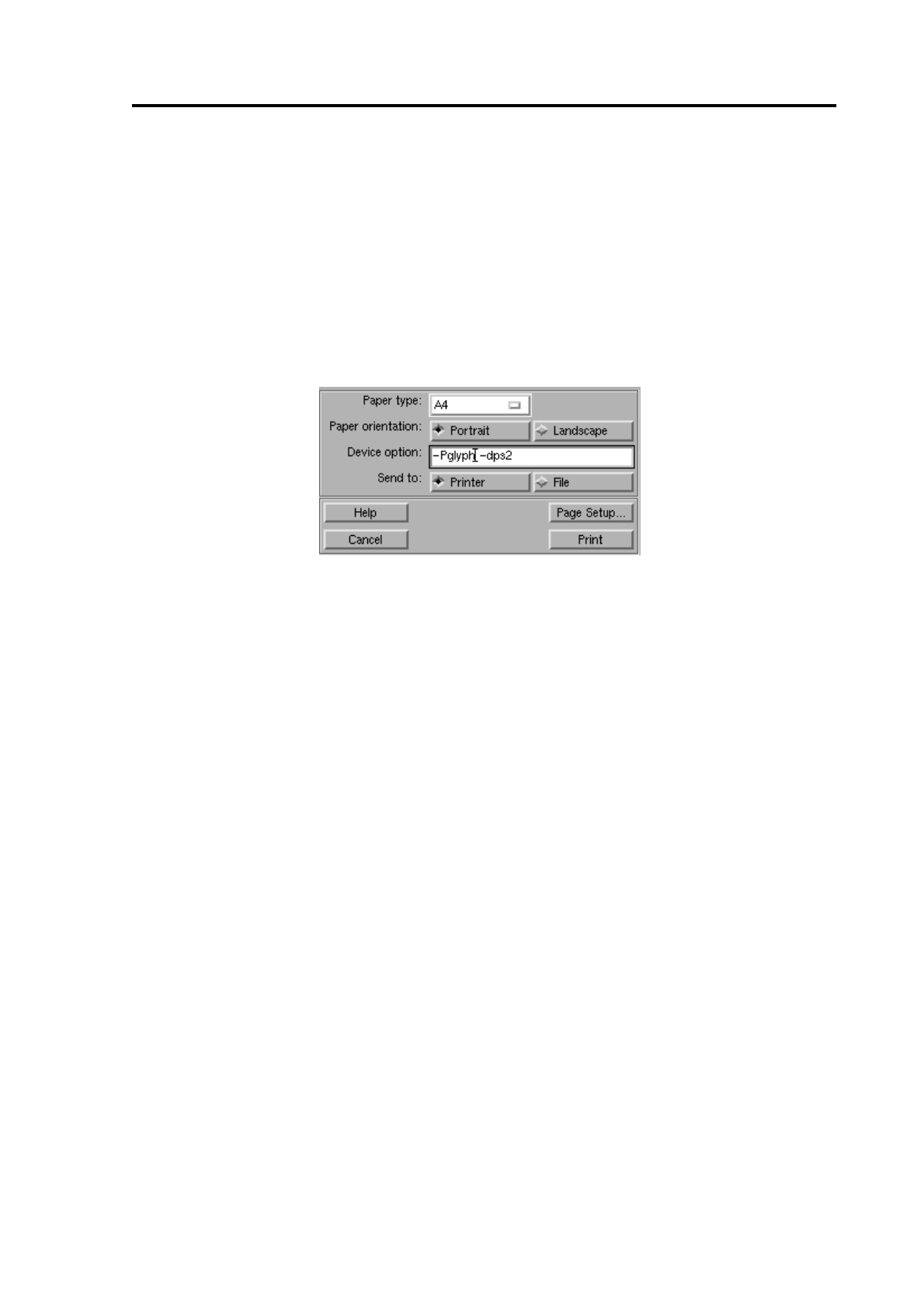

Figure 8 The printing dialog
The [Print] command in the File menu (p. 21) opens the printing dialog. Select
the correct paper type and orientation, select the correct printer by typing
-Pprintername -dpsc2
in the [Device option] field and press the [Print] button.
10.2 Saving to an image file
The [Print] command in the File menu (p. 21) opens the printing dialog. You
can save the image with a format compatible with old Adobe Illustrator by typ-
ing
-dill
in the [Device option] field, or as a general EPS-file (which can be opened in
Adobe Illustrator version 6 or newer) with the option
-depsc
To produce JPEG output, use the option
-djpeg
Press down the [File] button, then the [Save...] button, and a dialog for the out-
put file name is opened.
