Appendix B Accessories|
B-42 Revision August 2008, 03VE, SW V2.04

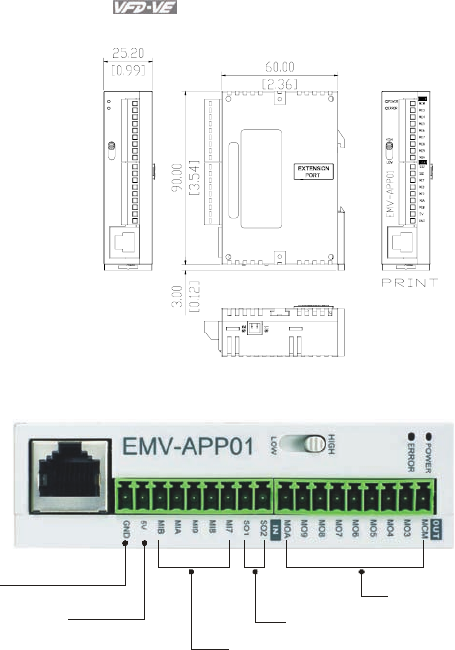

B.10.2 Dimensions
B.10.3 Wiring
Analog signal common
Output power
refer to Pr.02-23 to Pr.02-27
refer to Pr.03-21 to Pr.03-24
refer to Pr.02-35 to Pr.02-42
When wiring, please refer to the multi-function input/output function in parameters group 02
and group 03 of chapter 4 parameters to set by your applications.
