Cisco TelePresence System 3200
OL-14521-01
Chapter 9 Routing Power and Signal Cables
Parts List
Step 14 Attach and route the power-over-Ethernet and HD Video cables for the camera.

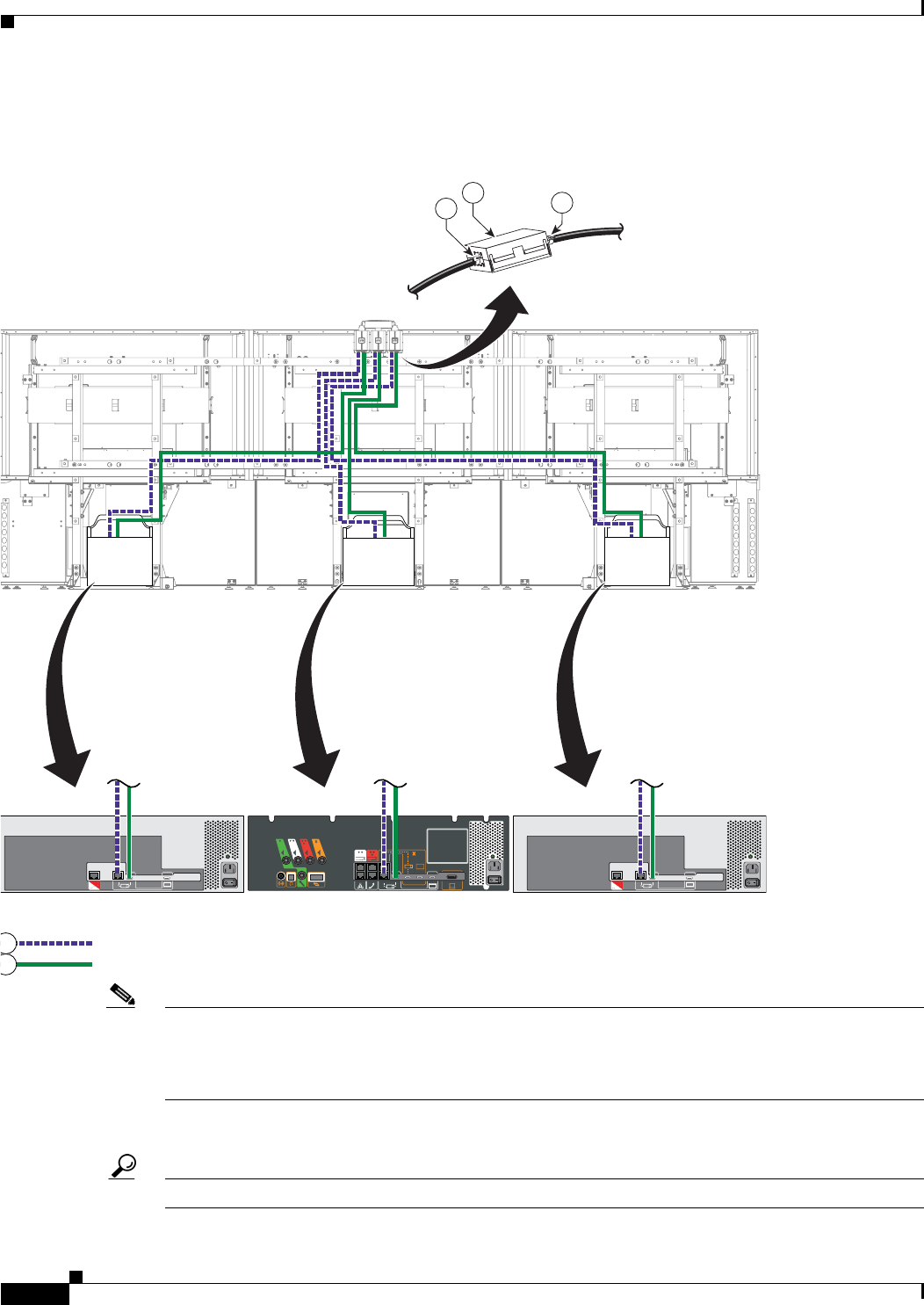

Figure 9-14 Cabling the Camera Assembly
Note The camera cluster can experience radio frequency interference issues if the camera Ethernet and
HD Video cables are routed, bundled, or tied together. Cisco recommends that you route the Ethernet
and HD Video cables separately and use cable ties to tie them to opposite sides of the frame. In addition,
attach the ferrite core and use tie wraps to secure them as shown in Figure 9-14.
Figure 9-14 displays the rear view of the Cisco TelePresence System 3200. Left and right are reversed.
Tip Before you plug cables into a codec, label each cable.
RJ45 Power over Ethernet
HDMI connector
