68 Administrator’s Guide
BMC Atrium Integration Engine 7.1.00
5
In the AR System Server Connection area, do the following tasks:
a In the AR Server field, type the host name of the AR System server.
b In the RPC Port field, type the port number of the AR System server.
c In the User Name field, type the user name for the AR System administrator.
d In the Password field, type the password for the AR System administrator.
6 Click the Main tab.
The SQL Server database tables and views information appears.

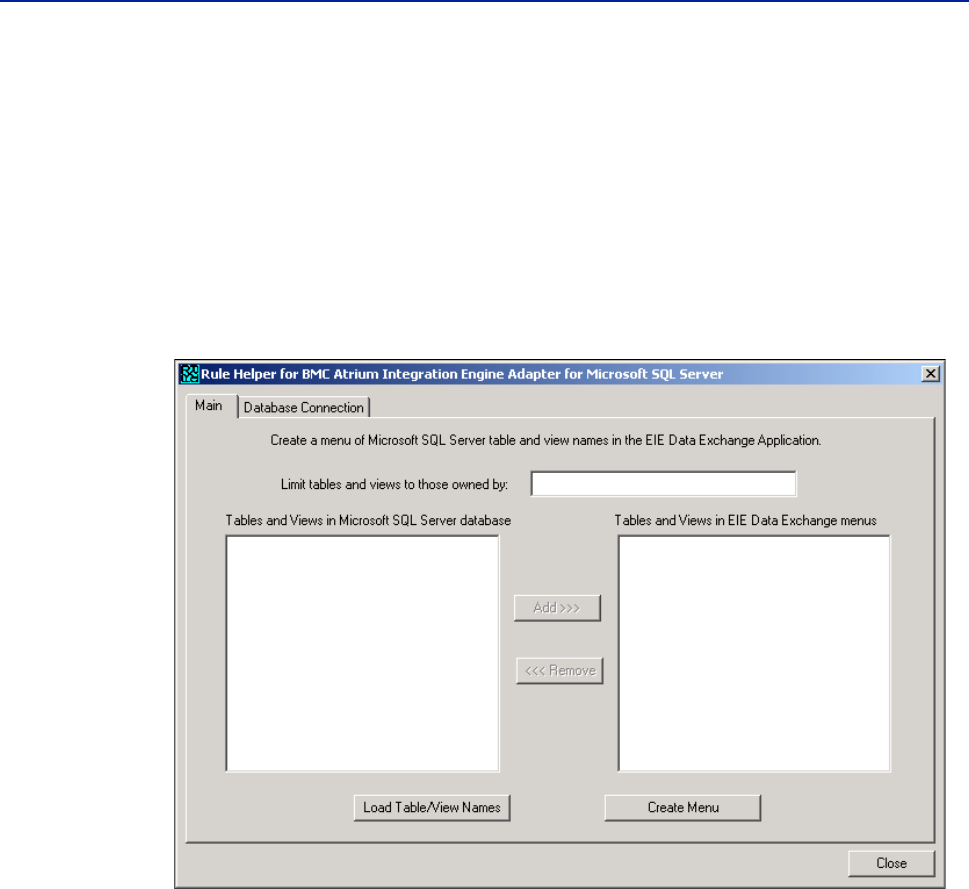

Figure 3-5: Main tab
7
Click Load Table/View Names.
The list on the left is updated with the tables and views from the SQL Server
database.
8 Select the tables and views you want to add from the list on the left, and click Add
to add them to the EIE Data Exchange menu list on the right.
9 Click Create Menu.
10 Click Close.
