5
513005
Installation

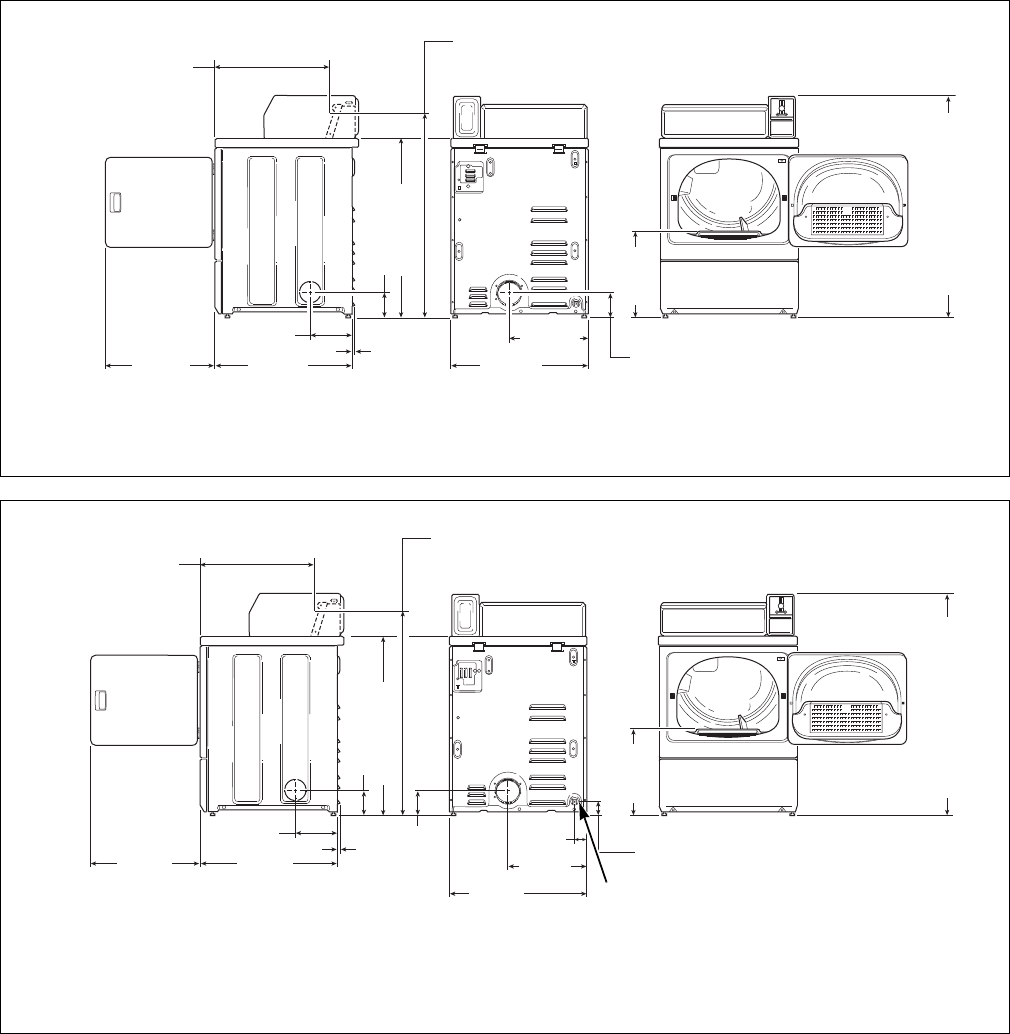

Dimensions
Metered Models
NOTE: Side, rear and bottom exhaust openings are
4 inch (10.2 cm) ducting. Gas models cannot be
vented out left side of cabinet because of burner
housing.
IMPORTANT: The dryer should have sufficient
clearance around it for needed ventilation and for
the ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
DRY2353N
*With leveling legs turned into base.
DRY2354N
*With leveling legs turned into base.
1 3/8 in. N.P.T. Gas Connection
23.5 in.
(59.7 cm)
8.0 in.
(20.3 cm)
0.4 in.
(1.02 cm)
28 in.
(71.1 cm)
*36 in. (91.4 cm)
15.4 in.
(39.1 cm)
ELECTRIC MODELS
4.0 in.
(10.2 cm)
26.9 in.
(68.3 cm)
22.06 in. (56 cm)
*4.5 in. (11.4 cm)
*15.44 in.
(39.2 cm)
*38.19 in. (97 cm)
*43 in. (109.2 cm)
Standard Capacity Meter Case
*43.875 in. (111.44 cm)
High Capacity Meter Case
DRY2254
GAS MODELS
23.5 in.
(59.7 cm)
8.0 in.
(20.3 cm)
28 in.
(71.1 cm)
*38.19 in. (97 cm)
15.4 in.
(39.1 cm)
2.3 in.
(6 cm)
26.9 in.
(68.3 cm)
0.4 in.
(1.02 cm)
2.8 in.
(7 cm)
1
22.06 in. (56 cm)
*4.5 in. (11.4 cm)
4.0 in.
(10.2 cm)
*15.44 in.
(39.2 cm)
*36 in. (91.4 cm)
*43 in. (109.2 cm)
Standard Capacity Meter Case
*43.875 (111.44 cm)
High Capacity Meter Case
