61200305L1-1 ATLAS 550 User Manual 7-1
Chapter 7
Module Terminal Menus
OVERVIEW
The controller board (slot 0) has two network interface slots. This chapter
only describes the module options available for the T1/PRI network
interface module. Individual option module menus are described in the
applicable module manuals.
The ATLAS 550 system controller automatically detects the presence of
modules when they are installed in the system. To view the menus for the
installed modules via the terminal menu, use the arrow keys to scroll to the
appropriate M
ODULES
menu and press
Enter
. If you prefer to view these
options in a vertical mode, move the cursor to a slot number and press
Enter
on the keyboard.
M
ODULES
The M
ODULES
main menu (see Figure 7-1) provides status information and
menu options that allow you to configure and control the installed option
modules, as well as the network ports.

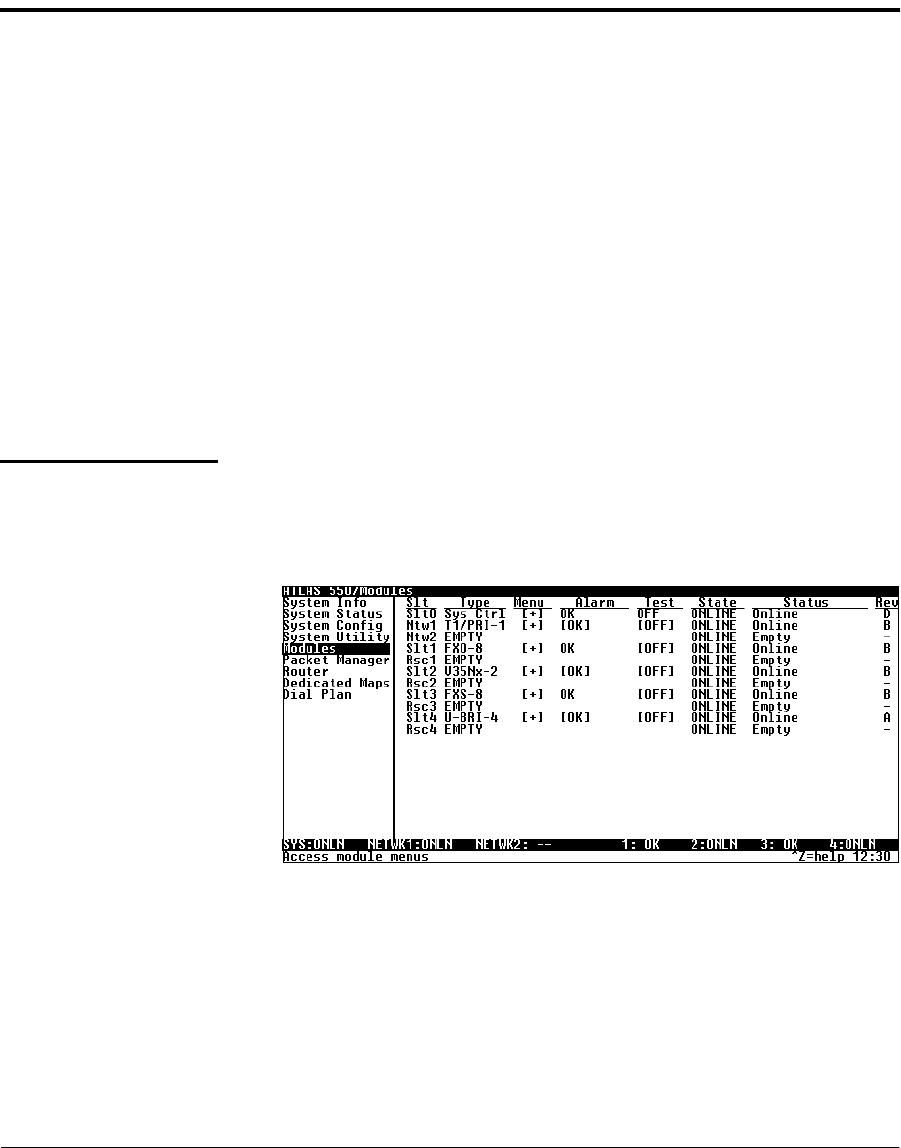

Figure 7-1. Modules Menu
