HARDWARE COMPONENTS
Bypass transport
The LPS bypass transport option, shown in figure 2-10, enables
third-party finishing equipment to connect to and interface
directly with your LPS.
The bypass transport fits into tray 1 of the dual stacker output
module configuration. Your LPS and third-party finishing devices
connect by aligning a finishing device with the bypass transport
exit slot, or by physically and electrically linking a finishing device
with the LPS bypass transport output module.
Third-party devices perform a variety of finishing tasks, such as
saddle-stitching, binding, folding, stapling, trimming, and
stacking.

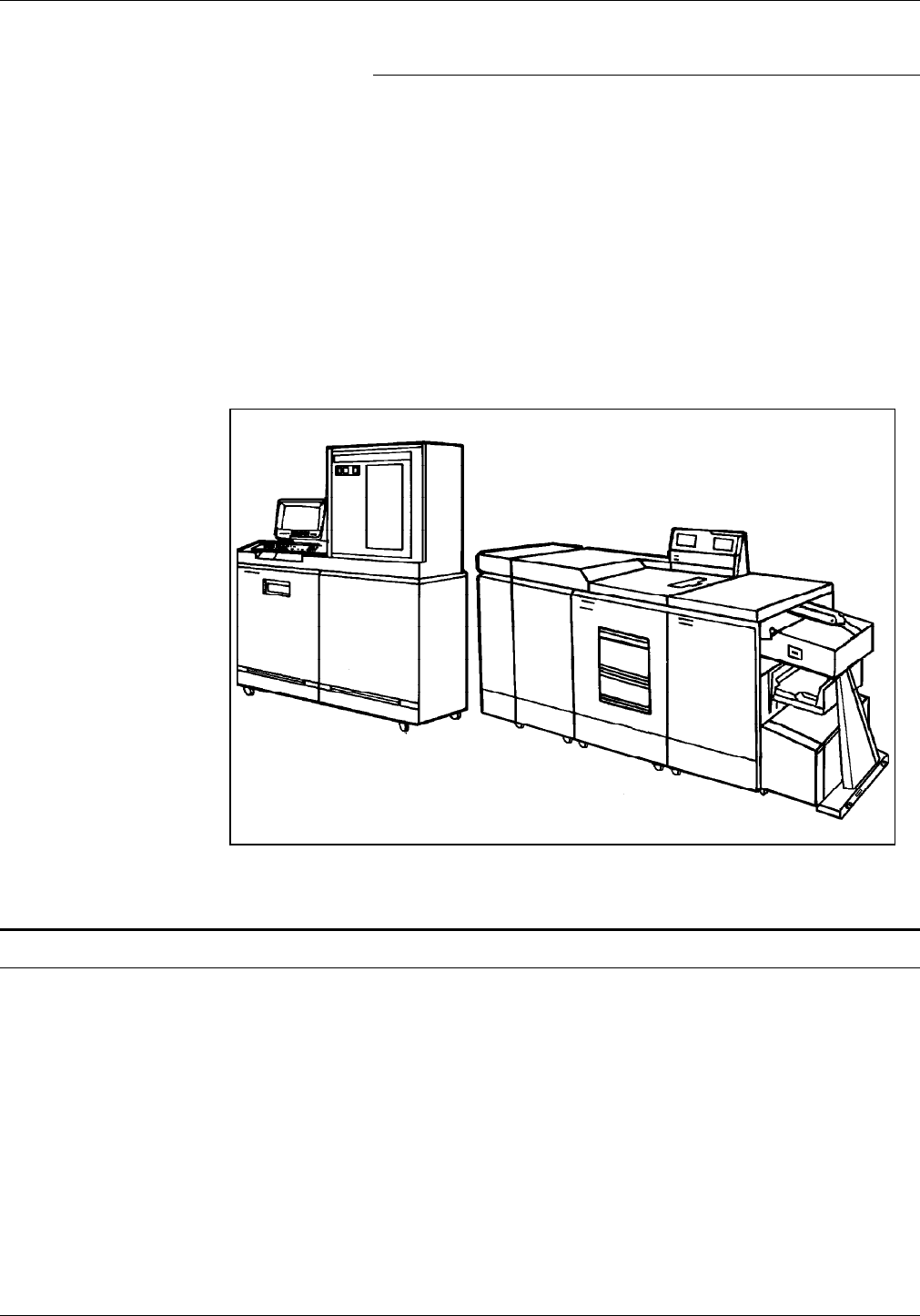

Figure 2-10. Laser printing system with bypass transport
Subsystems
The LPS contains five subsystems that perform the tasks
necessary to meet the requirements of the system. These
subsystems are as follows:
• Input
• Control
• Imaging
• Xerographic
• Output.
