Plan Vent System
Choose your exhaust installation type
Recommended exhaust installations
Typical installations vent the dryer from the rear of the dryer.
Optional exhaust installations
Venting systems come in many varieties. Select the type best for your installation.
This dryer can be converted to exhaust out the bottom. If you prefer, you may contact your
local dealer to have the dryer converted.
This dryer can also be exhausted from the rear to either the right or left side. Optional kits for
these exhaust installations are needed. Refer to the manufacturer’s instructions for kit
installation instructions.
NOTE: The following kits for close clearance alternate installations are available for purchase.
Please see the “Assistance or Service” section to order.
■ Over-the-Top Installation:
Part Number 4396028
■ Periscope Installation (For use with dryer vent to wall vent mismatch):
Part Number 4396037 - 0" (0 mm) to 18" (457 mm) mismatch
Part Number 4396011 - 18" (457 mm) to 29" (737 mm) mismatch
Part Number 4396014 - 29" (737 mm) to 50" (1270 mm) mismatch
■ Rear exhaust installation to left or right side:
Part Number 4396011
■ Vent extension:
Part Number 8544761
■ Bottom Exhaust:
Part Number 8212503

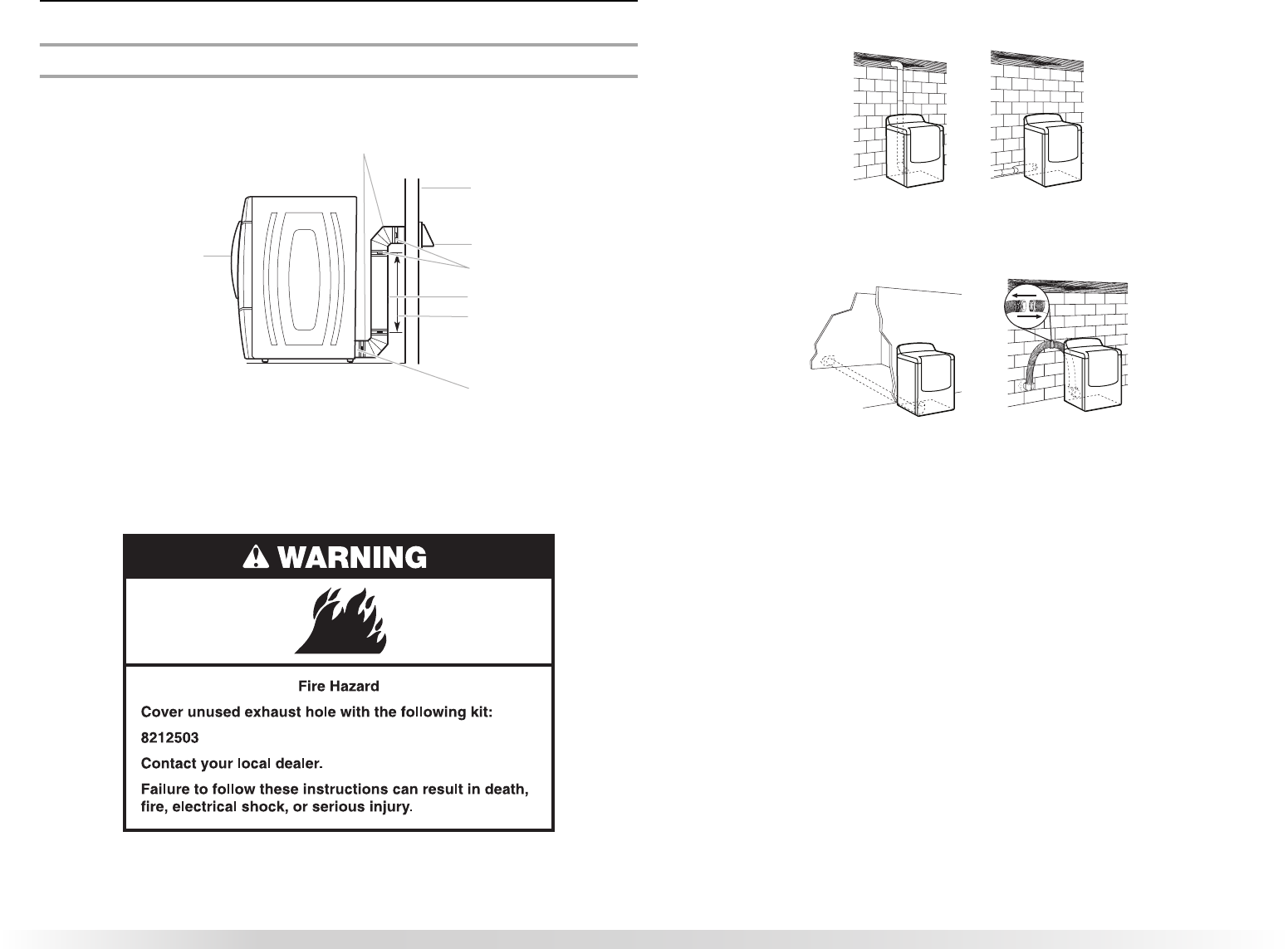

A.Dryer
B.Elbow
C.Wall
D.Exhaust hood
E.Clamps
F. Rigid metal or flexible metal vent
G.Vent length necessary to connect elbows
H.Exhaust outlet
H
G
F
E
D
C
A
B
A.Standard rear offset exhaust installation
B.Rear exhaust installation to the right or left side
C.Bottom exhaust installation
D.Over-the-top installation (also available with
one offset elbow)
A
B
C
D
