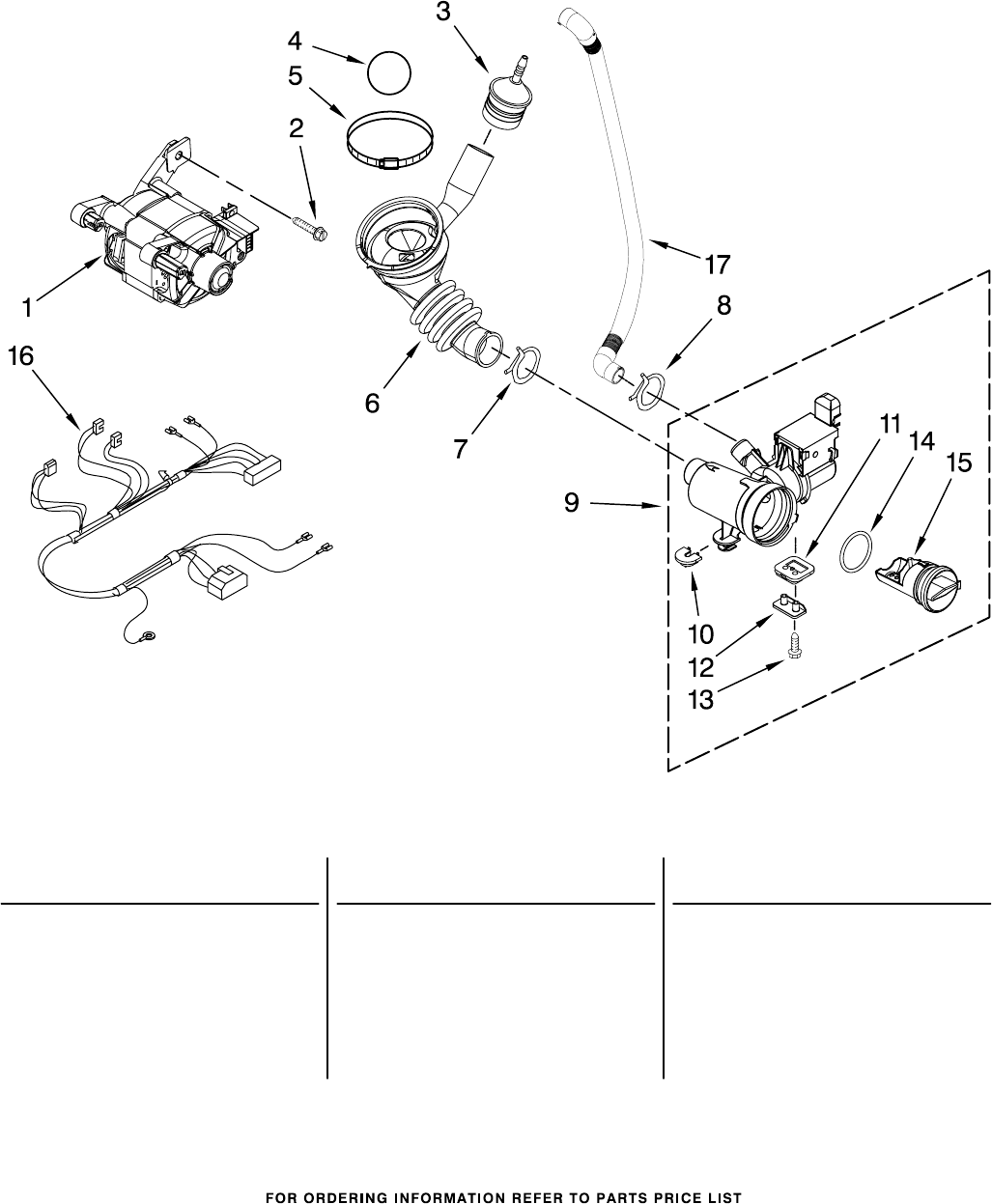

PUMP AND MOTOR PARTS
6
For Model: MHWE200XW00
(White)
W10312145
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
W10171902
Motor, Drive
2 8540134 Bolt, Motor
3 8540180 Air Trap
4 8540013 Ball
5 8181734 Clamp
6 8540012 Hose,
Tub to Pump
7 370448 Clamp, Hose
8
W10245724
Clamp, Drain Hose
9
W10130913
Pump (Complete)
10
W10034820
Foot, Rubber
(Slider)
11
W10034830
Foot, Rubber
(Lock)
12 8540033 Cap, Lock Foot
13 8533964 Screw,
10−16 x 1.25 (2)
14 8540025 Seal, Filter Cap
15 8540996 Filter Assembly
(Includes Item 14)
16
W10201879
Harness, Motor
17
W10272563
Hose, Drain
(Inner)
