3. Set the hose correctly by loosening
the ring nut.
After positioning the inlet hose, be
sure to tighten the ring nut again to
prevent leaks.

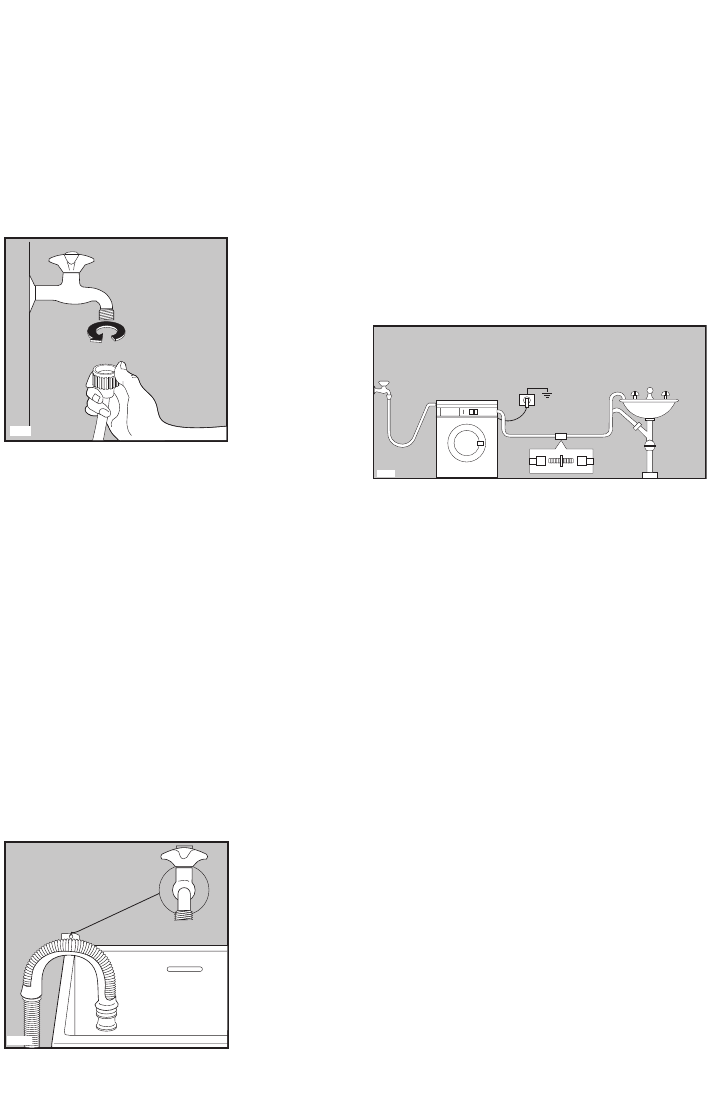

4. Connect the hose to a tap with a 3/4”
thread. Always use the hose supplied
with the appliance.
The inlet hose must not be lengthened. If
it is too short and you do not wish to
move the tap, you will have to purchase
a new, longer hose specially designed
for this type of use.
Water drainage
The end of the drain hose can be
positioned in three ways:
Hooked over the edge of a sink
using the plastic hose guide
supplied with the machine. In this
case, make sure the end cannot come
unhooked when the machine is
emptying. This could be done by tying it
to the tap with a piece of string or
attaching it to the wall.
P0022
P1088
In a sink drain pipe branch. This
branch must be above the trap so that
the bend is at least 60 cm above the
ground.
Directly into a drain pipe at a
height of not less than 60 cm and not
more than 90 cm. The end of the drain
hose must always be ventilated, i.e.
the inside diameter of the drain pipe
must be larger than the outside diameter
of the drain hose.
The drain hose must not be kinked.
The drain hose may be extended to a
maximum of 4 metres. An additional
drain hose and joining piece is available
from your local Service Centre.
Electrical connection
This machine is designed to operate on
a 220-230 V, single-phase, 50 Hz
supply.
Check that your domestic electrical
installation can take the maximum load
required (2.2 kW), also taking into
account any other appliances in use.
Connect the machine to an earthed
socket.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the above
safety precaution. Should the appliance
power supply cable need to be
replaced, this should be carried out by
our Service Centre.
Please ensure that when the appliance is
installed the power supply cable is easily
accessible.
P1118
installation electrolux 35
