Introduction
70400101
4
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Customer Service
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at (920) 748-3950
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call (920) 748-3121.
Serial Plate Location
When calling or writing for information about your
product, be sure to mention model and serial numbers.
Model and serial numbers are found on serial plate on
the rear of machine and inside door. Refer to Figure 1.
Wiring Diagram
The wiring diagram is located in the upper junction or
upper contactor box. The wiring diagram part number
is located in the lower portion of the electrical data on
the serial plate.

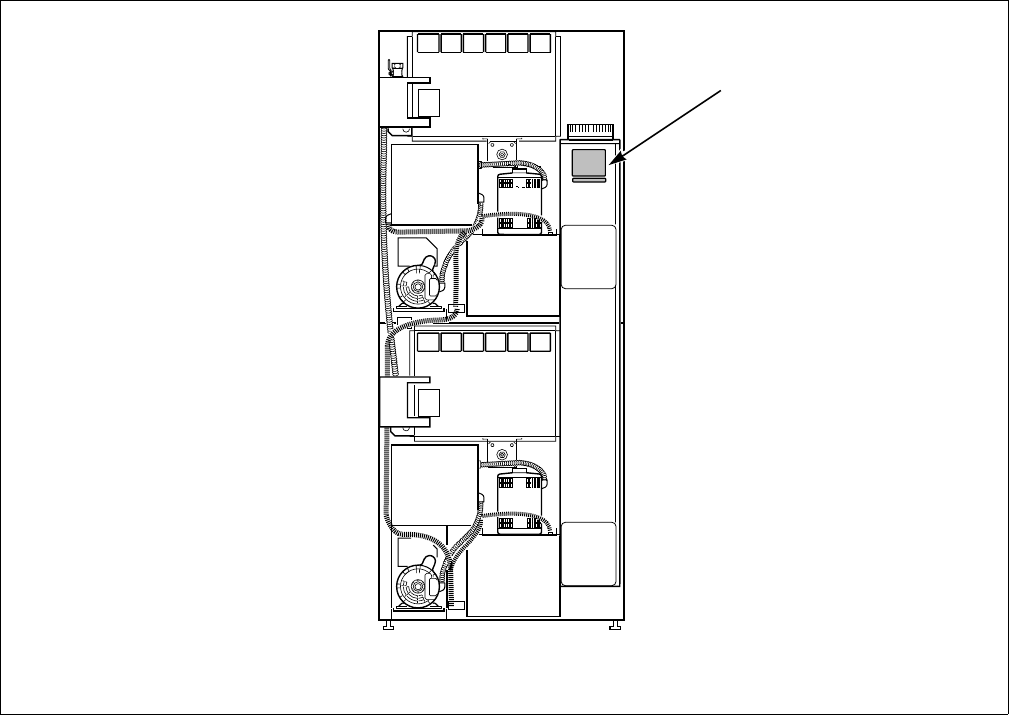

Figure 1
TMB1974N
1 Serial Plate
1
