PRODUCT MODEL NUMBERS

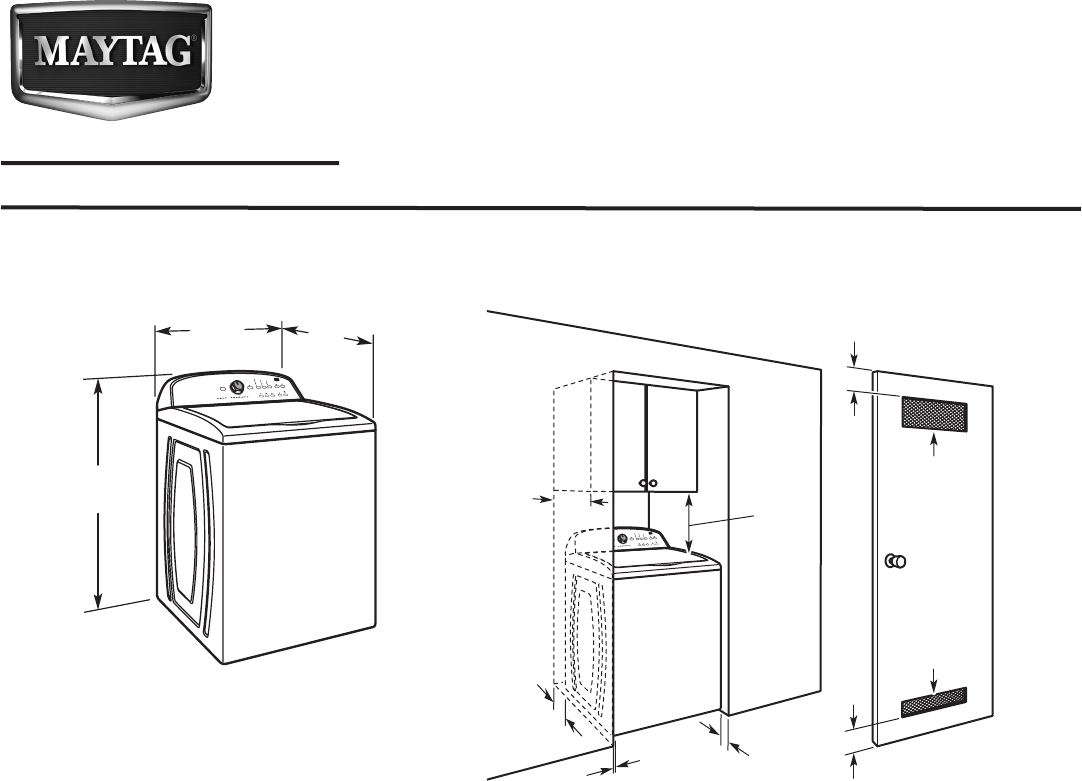

Washer Dimensions
W10455762B
08/2013
MVWX7000A, MVWX500B, MVWX600B
Top Loading Automatic Washer
Recessed area or closet installation
42"
(1067 mm)
27"
(686 mm)
27
1
/2"
(699 mm)
3"
(76 mm)
3"
(76 mm)
24 in.
2
(155 cm
2
)
48 in.
2
(310 cm
2
)
17"
(432 mm)
1"
(25 mm)
1"
(25 mm)
5"
(126 mm)
14" max.
(356 mm)
Select proper location for your washer to improve
performance and minimize noise and possible
“washer walk”. Install your washer in a basement,
laundry room, closet, or recessed area.
Dimensions show recommended spacing allowed, except for
closet door ventilation openings which are minimum required.
This washer has been tested for installation with spacing of 0"
(0 mm) clearance on the sides. Consider allowing more space
for ease of installation and servicing, and spacing for companion
appliances and clearances for walls, doors, and oor moldings.
Add spacing of 1" (25 mm) on all sides of washer to reduce
noise transfer. If a closet door or louvered door is installed,
top and bottom air openings in door are required.
