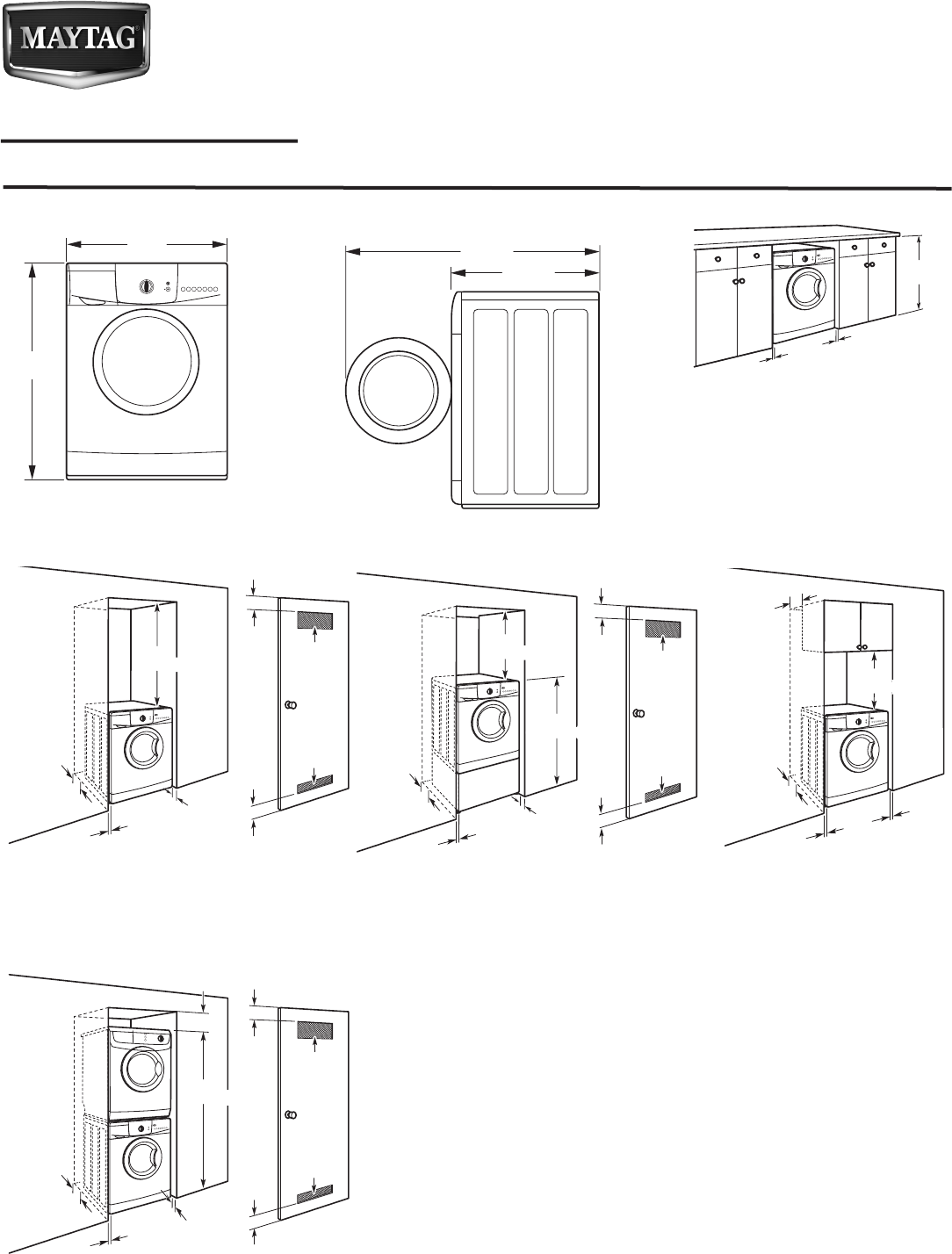

Washer Dimensions: Undercounter installation -
washer only:
Cabinet installation:
Installation spacing for recessed area or closet installation
The dimensions shown below are the recommended spacing for this washer.
■ Additional spacing should be considered for ease of installation and servicing.
■ Additional clearances might be required for wall, door, oor moldings, and dryer
venting.
■ Additional spacing of 1" (25 mm) on all sides of the dryer is recommended to
reduce noise transfer.
■ For closet installation, with a door, minimum ventilation openings in the top and
bottom of the door are required.
Louvered doors with equivalent ventilation openings are acceptable. Companion
appliance spacing should also be considered.
W10445545B
02/2012
MHWC7500Y
Front-Loading Automatic Washer
Recessed area or closet installation -
without pedestal
Recessed or closet installation -
stacked washer and dryer
23
7
/
16"
(595 mm)
32
7
/8"
(835 mm)
20
1
/8"
(510 mm)
36
1
/4""
(920 mm)
1"
(25 mm)
1"
(25 mm)
39" min.
1"
(25 mm)
5
1
/4"
(133 mm)
24 in.
2
(155 cm
2
)
48 in.
2
(310 cm
2
)
3"
(76 mm)
3"
(76 mm)
65
3
/4"
(1670 mm)
12"
(305 mm)
1"
(25 mm)
*External exhaust elbow requires additional space.
1"
(25 mm)
4"
(102 mm)
24 in.
2
(155 cm
2
)
48 in.
2
(310 cm
2
)
3"
(76 mm)
3"
(76 mm)
1"
(25 mm)
9"
(229 mm)
18"
(457 mm)
44
11
/16"
(1135 mm)
44
11
/16"
(1135 mm)
1"
(25 mm)
4"
(102 mm)
24 in.
2
(155 cm
2
)
48 in.
2
(310 cm
2
)
3"
(76 mm)
3"
(76 mm)
9"
(229 mm)
34"
(864 mm)
1"
(25 mm)
Recessed area or closet installation -
with pedestal
7"
(178 mm)
9"
(229 mm)
9"
(229 mm)
1"
(25 mm)
4"
(102 mm)
1"
(25 mm)
Custom cabinet installation
